  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Red

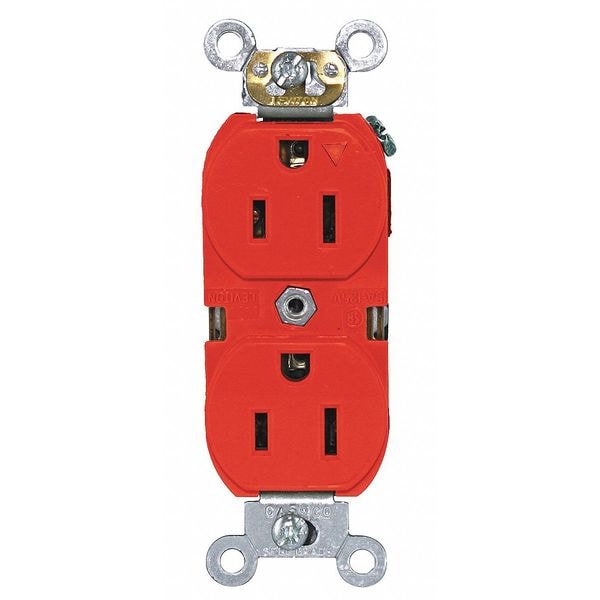

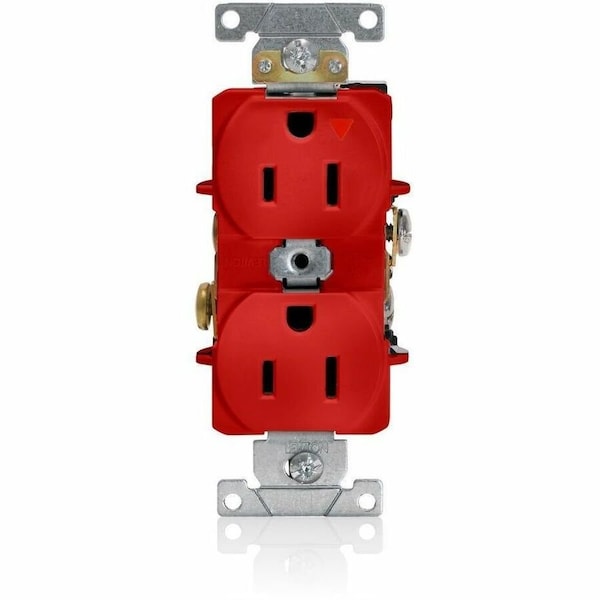

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Red 5262-IGR - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Red

  • Mfr # 5262-IGR

  • Zoro # G304393249

product price: $8.19
/ea
Sold in multiples of 10 for $81.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5262-IGR
Zoro #
G304393249
UPC #
07847705308
Country of Origin
Mexico

Dimensions

Overall Depth
1.1 in
Face Plate Height
2.8 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Face Plate Width
1.4 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Red
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL Federal Specification WC-596
Flange Type
Non-Flanged
HP
1/2 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type - Plugs and Receptacles
Duplex
Includes
Strap Material
Application Environment
Heavy-Duty Industrial Grade
Material
Nylon (Body and Face)
Sub-Category
Duplex Receptacles
Connection Orientation
Straight
Market
Commercial, Industrial
UL 94 Flammability Rating
V-2
Number of Outlets
2
NEMA Enclosure Rating
Not Rated
GFCI
No
Includes Mounting Hardware
Yes
Cover Type
No Cover
Grade
Federal Specification
Horsepower Rating
1/2 hp
Maximum Operating Temperature
140 Degrees F
Housing Material
Nylon
Polarized
Yes
Contact Material
Phosphor Bronze
Minimum Operating Temperature
-40 Degrees F
Isolated Ground System
Brass
Body Material
Nylon
UL498
File E13399
CSA C22.2 No. 42
File 152105
Screw Terminal Torque
14-18 in-lbs
Operating Temperature
-40°C to 60°C
Flammability
Rated V-2 per UL 94
Strap Material
Galvanized Steel
Terminal Accom.
14-10 AWG
Grounding Screw
Brass 8-32
Termination
Back or Side Wire
ANSI
C-73
Wire
3
Dielectric Voltage
Withstands 2000V per UL498
Torque Range
14-16 inch pounds
Clamp Nuts
Galvanized Steel
Current Limiting
Full Rated Current
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
UL Fed Spec WC-596
File E13399
Terminal Screws
Plated Brass
Device Type
Duplex Receptacle Outlet
Line Contacts
Phosphor Bronze
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Feature 4
Smooth Face
Pole
2
Face Material
Nylon
At Rated Voltage
1/2 HP
Function
Isolated Ground

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Red, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
