  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Red

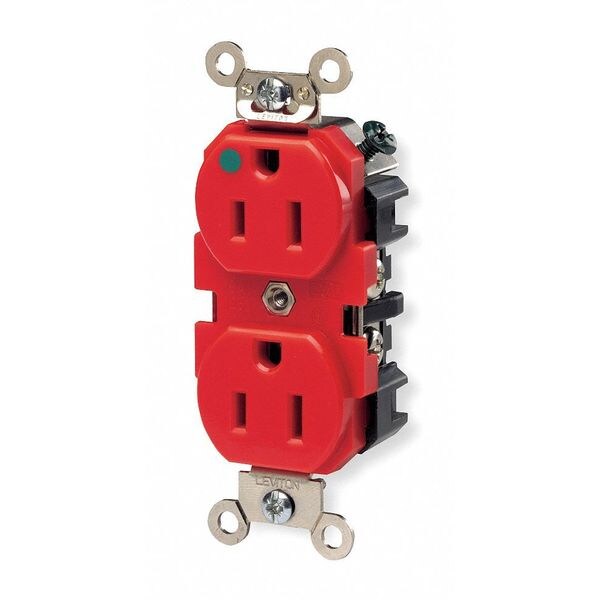

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Red 8200-R - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Red

  • Mfr # 8200-R

  • Zoro # G704393252

product price: $10.39
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8200-R
Zoro #
G704393252
UPC #
07847781860
Country of Origin
Mexico

Dimensions

Overall Depth
1.1 in
Face Plate Height
2.8 in
Maximum Wire Size
10 AWG
Face Plate Width
1.5 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Red
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL Federal Specification WC-596, UL 498HG
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Outlet Type - Plugs and Receptacles
Duplex
Material
Nylon (Body and Face)
Sub-Category
Duplex Receptacles
Application Environment
Extra Heavy-Duty Hospital Grade
Wiring Method - Plugs and Receptacles
Back and Side
HP
1/2 hp
Includes Mounting Hardware
Yes
Maximum Operating Temperature
140 Degrees F
Cover Type
No Cover
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Horsepower Rating
1/2 hp
UL 94 Flammability Rating
V-2
Grade
Hospital Grade Fed. Spec.
NEMA Enclosure Rating
Not Rated
Contact Material
Nickel-Plated Brass
Housing Material
Nylon
Number of Outlets
2
Connection Orientation
Straight
GFCI
No
Feature 4
Smooth Face
Current Limiting
Full Rated Current
UL498HG
File E13399
Dielectric Voltage
Withstands 2000V per UL498
Pole
2
Wire
3
Operating Temperature
-40°C to 60°C
CSA C22.2 No. 42
File 152105
Termination
Back or Side Wire
Grounding Screw
Plated Brass
Screw Terminal Torque
14-18 in-lbs
Ground Clips
Nickel-Plated Brass
Flammability
Rated V-2 per UL 94
Terminal Screws
Nickel-Plated Brass 10-32
Strap Material
Nickel Plated Brass
Line Contacts
Nickel-Plated Brass Triple-Wipe .040 Thick
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Terminal Accom.
14-10 AWG
Clamp Nuts
Zinc-Plated Steel
UL Fed Spec WC-596
File E13399
ANSI
C-73
Face Material
Nylon
Body Material
Nylon
Device Type
Duplex Receptacle Outlet
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Red, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
