  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

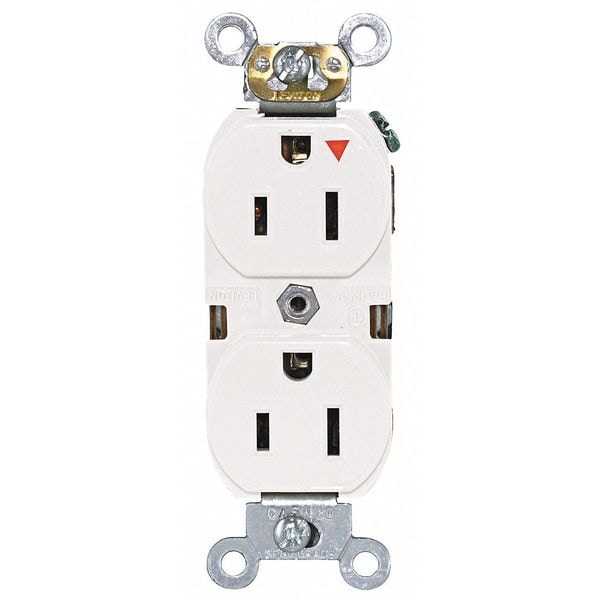

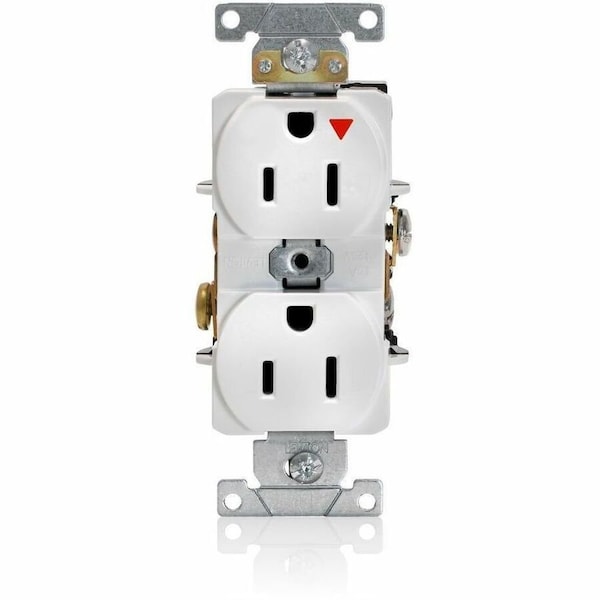

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White 5262-IGW - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

  • Mfr # 5262-IGW

  • Zoro # G904393281

product price: $8.59
/ea
Sold in multiples of 10 for $85.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5262-IGW
Zoro #
G904393281
UPC #
07847705307
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Face Plate Height
2.8 in
Face Plate Width
1.4 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Overall Depth
1.1 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL Federal Specification WC-596
Flange Type
Non-Flanged
Application Environment
Heavy-Duty Industrial Grade
Voltage
125 VAC
Includes
Strap Material
Material
Nylon (Body and Face)
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
HP
1/2 hp
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type - Plugs and Receptacles
Duplex
Sub-Category
Duplex Receptacles
Grade
Federal Specification
Cover Type
No Cover
Horsepower Rating
1/2 hp
UL 94 Flammability Rating
V-2
Polarized
Yes
Contact Material
Phosphor Bronze
Connection Orientation
Straight
Housing Material
Nylon
Includes Mounting Hardware
Yes
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
Not Rated
Number of Outlets
2
GFCI
No
Market
Commercial, Industrial
UL498
File E13399
Terminal Accom.
14-10 AWG
Body Material
Nylon
Current Limiting
Full Rated Current
Device Type
Duplex Receptacle Outlet
Pole
2
Face Material
Nylon
UL Fed Spec WC-596
File E13399
CSA C22.2 No. 42
File 152105
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Clamp Nuts
Galvanized Steel
Dielectric Voltage
Withstands 2000V per UL498
Torque Range
14-16 inch pounds
At Rated Voltage
1/2 HP
Line Contacts
Phosphor Bronze
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Isolated Ground System
Brass
Feature 4
Smooth Face
Flammability
Rated V-2 per UL 94
Wire
3
Grounding Screw
Brass 8-32
Operating Temperature
-40°C to 60°C
Screw Terminal Torque
14-18 in-lbs
ANSI
C-73
Termination
Back or Side Wire
Terminal Screws
Plated Brass
Function
Isolated Ground
Strap Material
Galvanized Steel

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
