  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

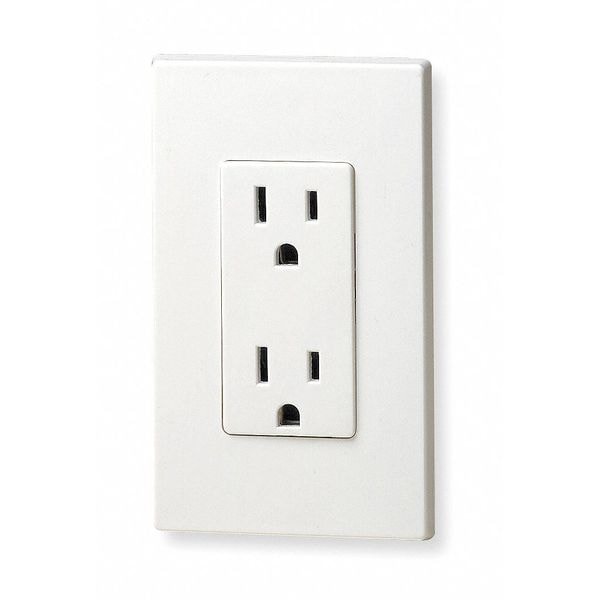

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White 5325-W - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

  • Mfr # 5325-W

  • Zoro # G104836533

product price: $2.59
/ea
Sold in multiples of 10 for $25.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5325-W
Zoro #
G104836533
UPC #
07847723330
Country of Origin
United States

Dimensions

Maximum Wire Size
12 AWG
Overall Depth
1.1 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.8 in
Face Plate Width
1.3 in
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA C22.2 No. 42, NOM 057, UL 498
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Sub-Category
Duplex Receptacles
NEMA Configuration
5-15
Application Environment
Residential Grade
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Wiring Method - Plugs and Receptacles
Push and Side
Outlet Type - Plugs and Receptacles
Decorator Duplex
Includes
Grounding Clip
Material
Thermoplastic (Body and Face)
UL 94 Flammability Rating
V-2
Includes Mounting Hardware
Yes
Number of Poles & Wires
2 Pole / 3 Wire
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
Not Rated
Polarized
No
Key Resistance Properties
Standard Resistance
Wire Connection Types
Screw Terminals
Grade
Federal Specification
Cover Type
No Cover
Connection Orientation
Straight
Additional Electrical Protection
Standard Protection
Housing Material
Thermoplastic
Market
Residential
Maximum Operating Temperature
140 Degrees F
GFCI
No
Primary Resistance Properties
Impact Resistant - 15 A
Number of Outlets
2
UL 498
File E13399
UL Listed
File E-13399
CSA C22.2 No. 42
File 152105; Class 6233-01
Torque Range
14 - 18 in.-lbs
Ground Clips
Brass-Plated
Terminal Screws
Brass
Termination
Quickwire Push-In & Side
Terminal ID
Brass-Hot, Green-Ground, White-Neutral
Pole
2
Body Material
Thermoplastic
NOM Certified
57
Face Material
Thermoplastic
Grounding Screw
Steel 8-32
Terminal Accom.
14-12 AWG
Flammability
Rated V-2 per UL 94
Strap Material
Steel
Operating Temperature
-40°C to 60°C
Wire
3

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized No, Receptacle Type Decorator Duplex, Resistance Properties Impact Resistant

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
