  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

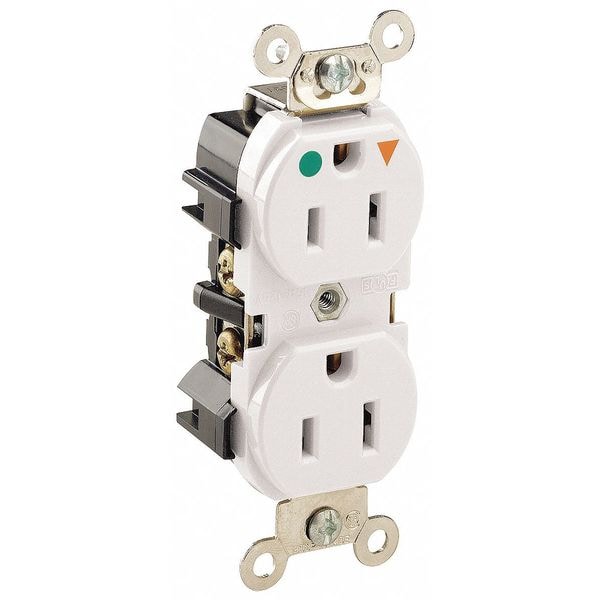

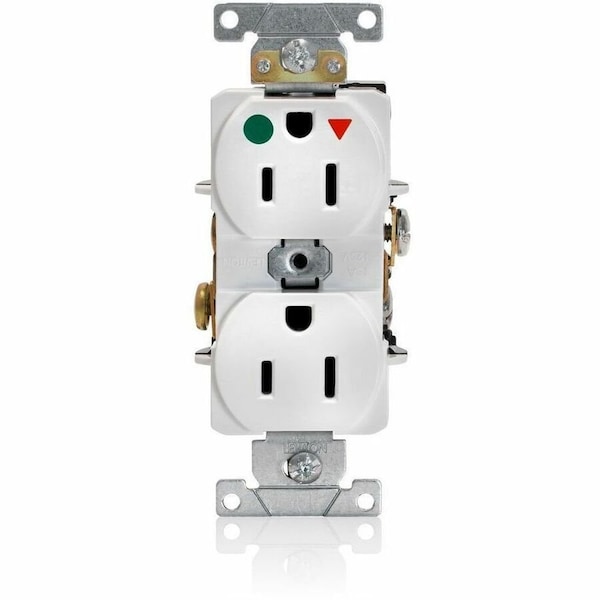

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White 8200-IGW - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

  • Mfr # 8200-IGW

  • Zoro # G004393242

product price: $18.39
/ea
Sold in multiples of 10 for $183.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8200-IGW
Zoro #
G004393242
UPC #
07847705730
Country of Origin
Mexico

Dimensions

Face Plate Height
2.8 in
Overall Depth
1.1 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL Federal Specification WC-596, UL 498HG, cULus
Flange Type
Non-Flanged
Material
PBT Polyester Blend (Body and Face)
Sub-Category
Duplex Receptacles
Outlet Type - Plugs and Receptacles
Duplex
Wiring Method - Plugs and Receptacles
Back and Side
HP
1/2 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Application Environment
Heavy-Duty Hospital Grade
UL 94 Flammability Rating
V-2
Horsepower Rating
1/2 hp
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
140 Degrees F
Contact Material
Phosphor Bronze
GFCI
No
Polarized
Yes
Cover Type
No Cover
Housing Material
PBT Thermoplastic Polyester
Connection Orientation
Straight
NEMA Enclosure Rating
Not Rated
Grade
Hospital Grade Fed. Spec.
Number of Outlets
2
Includes Mounting Hardware
Yes
Applicable Standards
UL 498, Fed Spec W-C-569, CSA 22.2 No. 42
UL Fed Spec WC-596
File E13399
Terminal Clamp
Brass
Ground Contacts
0030" Brass
Pole
2
Function
Isolated Ground
Ground Clips
Brass
Grounding Screw
#8 Hex Head, Triple-Drive Bass
Strap Material
Steel (Galvanized G60)
Terminal Screws
#8 Triple-Drive Brass
ANSI
C-73
Shutter Mechanism
Acetal
Wire
3
Clamp Nuts
0.030" Brass
Body Material
PBT Polyester Blend
Mounting Screws
Triple-Drive Plated Steel
Line Contacts
0.030" Phosopher Bronze
Screw Terminal Torque
14-18 in-lbs
At Rated Voltage
1/2 HP
CSA C22.2 No. 42
File 152105
Termination
Back or Side Wire
UL498HG
File E13399
Certification/Listing
cULus, NOM-ANCE
Flammability
Rated V-2 per UL 94
Temperature Rise
Max 30C temperature rise at full rated current
Terminal Accom.
14-10 AWG
Current Limiting
Full Rated Current
Device Type
Duplex Receptacle Outlet
Wire Type
Stranded or Solid
Operating Temperature
-40°C to 60°C
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Dielectric Voltage
Withstands 3000V min
Face Material
PBT Polyester Blend
Feature 4
Smooth Face

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material PBT Thermoplastic Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
