  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

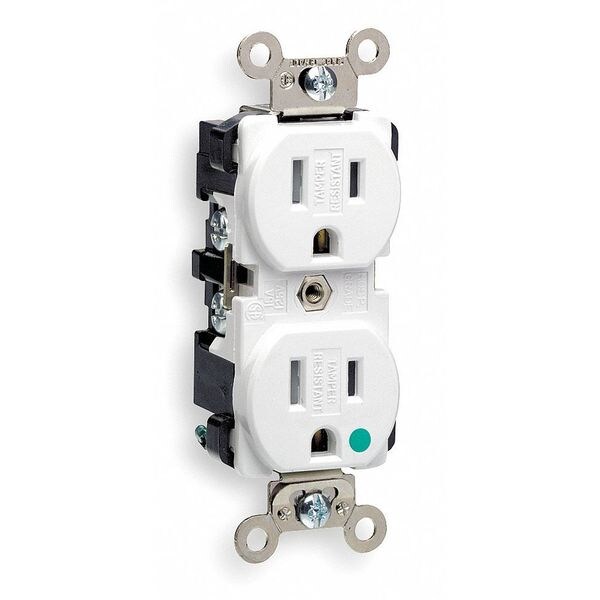

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White 8200-SGW - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

  • Mfr # 8200-SGW

  • Zoro # G504393193

product price: $15.19
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8200-SGW
Zoro #
G504393193
UPC #
07847705715
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Face Plate Width
1.5 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.1 in
Maximum Wire Size
10 AWG
Face Plate Height
2.8 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-1 & WD-6, NOM 057, UL Federal Specification WC-596, UL 498HG
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
HP
1/2 hp
Outlet Type - Plugs and Receptacles
Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Sub-Category
Duplex Receptacles
Wiring Method - Plugs and Receptacles
Back and Side
Material
Nylon (Body and Face)
Tamper Resistant
Yes
Application Environment
Extra Heavy-Duty Hospital Grade
Maximum Operating Temperature
140 Degrees F
Housing Material
Nylon
Number of Outlets
2
Cover Type
No Cover
Grade
Hospital Grade Fed. Spec.
Contact Material
Nickel-Plated Phosphor Bronze
GFCI
No
Horsepower Rating
1/2 hp
Polarized
Yes
Includes Mounting Hardware
Yes
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
NEMA Enclosure Rating
Not Rated
Minimum Operating Temperature
-40 Degrees F
ANSI
C-73
CSA C22.2 No. 42
File 152105
Operating Temperature
-40°C to 60°C
Termination
Back or Side Wire
UL498HG
File E13399
Ground Clips
Nickel-Plated Brass
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Grounding Screw
Plated Steel
Device Type
Duplex Receptacle Outlet
UL Fed Spec WC-596
File E13399
Shutter Mechanism
Delrin® Acetal
Body Material
Nylon
Line Contacts
Nickel Plated Phosphor Bronze
Strap Material
Nickel Plated Steel
Clamp Nuts
Zinc-Plated Steel
Terminal Accom.
14-10 AWG
Screw Terminal Torque
14-18 in-lbs
Torque Range
14-16 inch pounds
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Pole
2
Feature
Tamper-Resistant|Smooth Face
Current Limiting
Full Rated Current
Face Material
Nylon
Flammability
Rated V-2 per UL 94
Wire
3
Terminal Screws
Plated Brass
Dielectric Voltage
Withstands 2000V per UL498

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant
