  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

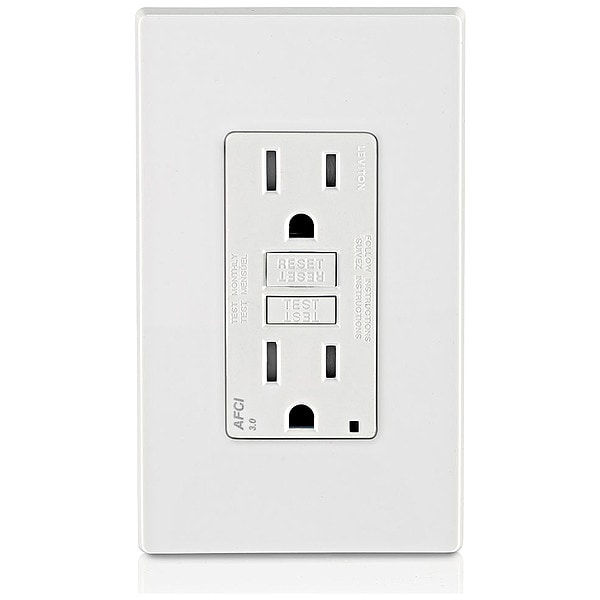

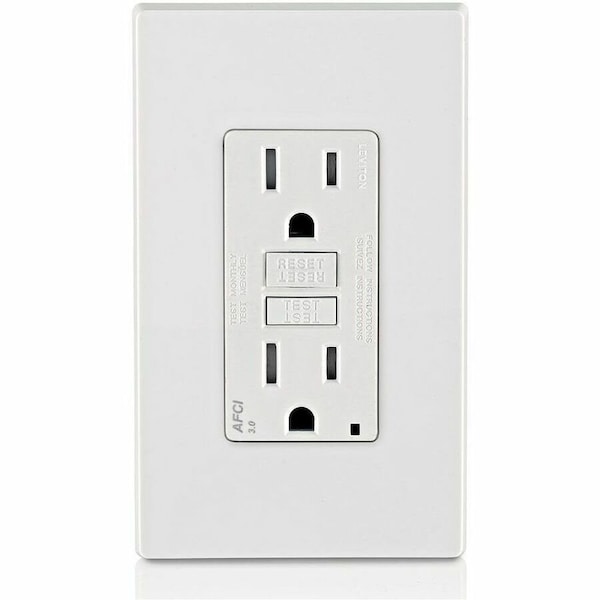

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White AFTR1-W - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

  • Mfr # AFTR1-W

  • Zoro # G704393344

product price: $31.45
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AFTR1-W
Zoro #
G704393344
UPC #
07847757494
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
White
Mount Type
Flush
Standards
ANSI C73, CSA C22.2 No. 42, NOM 057, UL 498, UL Federal Specification WC-596, UL1699.A
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Special Features
Device Design Reduces Nuisance Tripping, Impact-Resistant, Over-Voltage Resistant, Silver Alloy Contact, Two-Year Product Warranty
Weather Resistant - Plugs and Receptacles
No
Surge Suppression
Yes
Application Environment
General Purpose
Wiring Method - Plugs and Receptacles
Back and Side
Power Indicator
Yes
Tamper Resistant
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Includes
Screws, Self Grounding Clip
Outlet Type - Plugs and Receptacles
Blank Face
HP
1 hp
Self-Testing
No
Contact Material
Brass
Number of Outlets
2
Reset Type
Automatic
Visual Indicator Lights
Power Connected
Cover Type
No Cover
Grade
General Use
Hub Type
Feed Through
Surge Protection
No
GFCI
No
Horsepower Rating
1 hp
Compatible with Series
AFTR1
Connection Orientation
Straight
AFCI
Yes
UL 94 Flammability Rating
V-2
Maximum Operating Temperature
150.8 Degrees F
Wall Plate Material
Nylon
Reverse Service
Yes
Polarized
Yes
Self Testing
No
Housing Material
Polycarbonate
Minimum Operating Temperature
-31 Degrees F
Terminal Screws
Plated Steel
Series
AFTR1
Wallplate
Included
Standards and Certifications
UL/CSA, NEMA WD6, NEMA WD1
Strap Material
Galvanized Steel
Termination
Back & Side
Flammability
Rated V-2 per UL 94
Torque Range
14 - 18 in.-lbs
Line Contacts
Brass Double-Wipe .031 Thick
UL1699.A
File E342815
Terminal Accom.
14-10 AWG
Yoke
Zinc-Plated Steel
Grounding Screw
Plated Steel
Face Material
Thermoplastic
Body Material
Polycarbonate
At Rated Voltage
1 HP
Wire
3
Pole
2
Clamps
Brass
Dielectric Voltage
Withstands 1250VAC per UL 1699A
ANSI
C-73
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
CSA Technical Information Letter No. M-02A
Yes
Feature
Tamper-Resistant
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
UL498
Yes
UL Fed Spec WC-596
Yes
CSA C22.2 No. 42
Yes
Operating Temperature
-35C to +66C

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
