  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

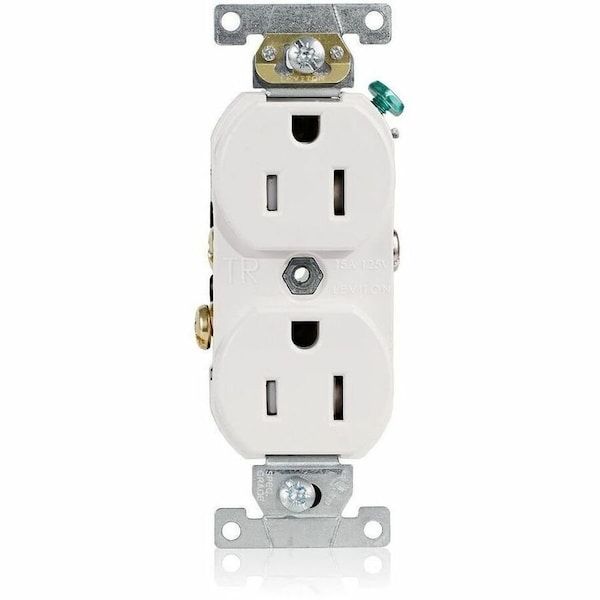

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White TCR15-W - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

  • Mfr # TCR15-W

  • Zoro # G504393261

product price: $5.19
/ea
Sold in multiples of 10 for $51.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCR15-W
Zoro #
G504393261
UPC #
07847765538
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Face Plate Width
1.3 in
Overall Depth
1 in
Face Plate Height
2.8 in
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Self-Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, NEMA WD-1 & WD-6, NOM 057, cULus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Material
Thermoplastic (Body and Face)
Application Environment
Commercial
Wiring Method - Plugs and Receptacles
Side
HP
1/2 hp
Tamper Resistant
Yes
Outlet Type - Plugs and Receptacles
Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Sub-Category
Duplex Receptacles
Polarized
Yes
Horsepower Rating
1/2 hp
NEMA Enclosure Rating
Not Rated
GFCI
No
Maximum Operating Temperature
140 Degrees F
Market
Commercial
Grade
Federal Specification
Cover Type
No Cover
Includes Mounting Hardware
Yes
Housing Material
Thermoplastic
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
Number of Outlets
2
Contact Material
Brass
Terminal Accom.
10-14 AWG
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Termination
Side Wire
Device Type
Duplex Receptacle Outlet
Grounding Screw
Plated Steel
Current Limiting
Full Rated Current
Ground Clips
Brass
ANSI
C-73
Shutter Mechanism
Delrin® Acetal
Screw Terminal Torque
14-18 in-lbs
Strap Material
Zinc-Plated Steel
Face Material
Thermoplastic
cULus
File E13399
Body Material
Thermoplastic
Pole
2
Operating Temperature
-40°C to 60°C
Feature 4
Smooth Face
Dielectric Voltage
Withstands 2000V per UL498
Feature 2
Tamper-Resistant
Flammability
Rated V-2 per UL94
Wire Type
Solid or Stranded Building Wire
Line Contacts
Brass .031 Thick
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Wire
3
Terminal Screws
Plated Steel

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant
