  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

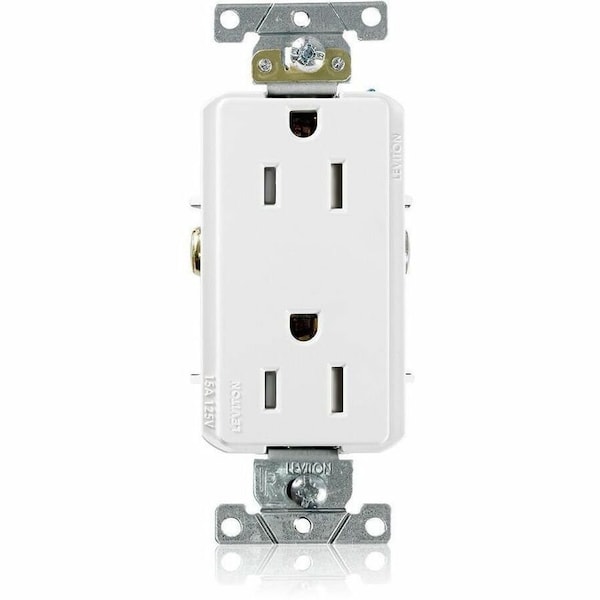

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White TDR15-W - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

  • Mfr # TDR15-W

  • Zoro # G604393208

product price: $10.07
/ea
Sold in multiples of 10 for $100.70

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TDR15-W
Zoro #
G604393208
UPC #
07847738182
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Face Plate Height
2.8 in
Overall Depth
0.9 in
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NOM 057, UL 498, UL Federal Specification WC-596, cULus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Outlet Type - Plugs and Receptacles
Decorator Duplex
Application Environment
Heavy-Duty Industrial Grade
Sub-Category
Duplex Receptacles
Includes
Cover, Wallplate
HP
1/2 hp
Wiring Method - Plugs and Receptacles
Back and Side
Tamper Resistant
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Material
PBT Polyester Blend (Body and Face)
Minimum Operating Temperature
-40 Degrees F
Cover Type
No Cover
Contact Material
Brass
UL 94 Flammability Rating
V-0
GFCI
No
Housing Material
PBT Polyester
Grade
Federal Specification
Maximum Operating Temperature
167 Degrees F
Connection Orientation
Straight
Includes Mounting Hardware
Yes
Polarized
Yes
Horsepower Rating
1/2 hp
Market
Industrial
NEMA Enclosure Rating
Not Rated
Number of Outlets
2
Temperature Rise
Max 30 °C temperature rise at full rated current
Grounding Screw
#8 Hex Head, Triple-Drive Brass
ANSI
C-73
Terminal ID
Brass - Hot, Silver - Neutral, Green - Ground,
Certification/Listing
cULus, NOM-ANCE
Operating Temperature
-40°C to 75°C
Terminal Screws
#8 Triple-Drive Brass
Ground Contacts
0.030" Brass
Flammability
Rated V-0 per UL 94
Dielectric Voltage
Withstands 3000 V minimum
Pole
2
Device Type
Duplex Receptacle Outlet
Wire
3
Terminal Clamps
Brass
Screw Terminal Torque
14-18 in-lbs
Face Material
PBT Polyester Blend
Ground Clips
Brass
Feature
Tamper-Resistant|Smooth Face
Mounting Screws
Triple-Drive Plated Steel
Applicable Standards
UL 498, Fed Spec W-C-596, CSA C22.2. No. 42
Shutter Mechanism
Acetal
Wire Type
Stranded or Solid
Body Material
PBT Polyester Blend
Line Contacts
Phosphor Bronze Triple Wipe 0.031
Strap Material
Steel (Galvanized G60)
Terminal Accom.
#14 AWG - #10 AWG
Termination
Back and Side Wire

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
