  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

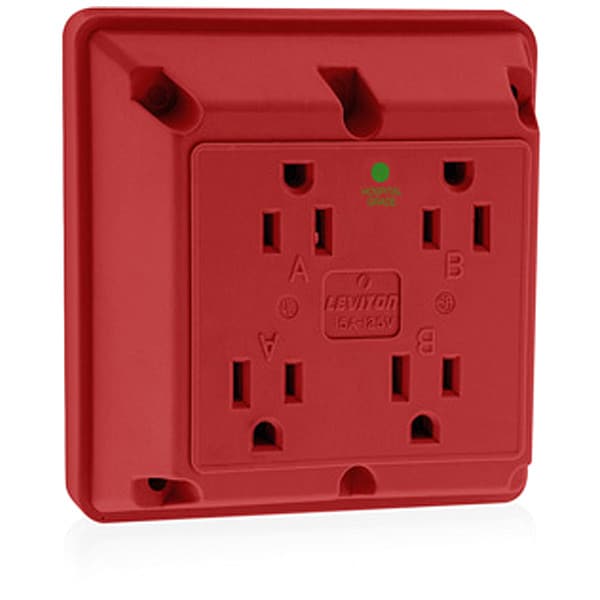

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded 1254-HR - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # 1254-HR

  • Zoro # G904256005

product price: $31.09
/ea

Key Features

Receptacle Type
Quad
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1254-HR
Zoro #
G904256005
UPC #
07847783051
Country of Origin
Mexico

Dimensions

Maximum Wire Size
12 AWG
Face Plate Width
4.5 in
Minimum Wire Size
14 AWG
Face Plate Height
4.5 in
Overall Depth
1.2 in
Mount Hole Center-to-Center Height
3.4 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Quad
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Red
Mount Type
Surface
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-1 and WD-6, UL 498 File E13399, UL 498HG File E13399
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Material
Nylon (Body and Face)
Application Environment
Heavy-Duty Hospital Grade
Outlet Type - Plugs and Receptacles
Quad
HP
1/2 hp
Voltage
125 VAC
Wiring Method - Plugs and Receptacles
Side
Sub-Category
Quad Receptacles
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Grade
Hospital Grade
Cover Type
No Cover
NEMA Enclosure Rating
Not Rated
Minimum Operating Temperature
-40 Degrees F
Includes
Strap Material
Includes Mounting Hardware
Yes
Contact Material
Phosphor Bronze
Horsepower Rating
1/2 hp
Connection Orientation
Straight
GFCI
No
Housing Material
Nylon
Polarized
Yes
UL 94 Flammability Rating
V-2
Number of Outlets
4
Maximum Operating Temperature
140 Degrees F
Torque Range
12-14 inch pounds
Terminal Screws
Brass 8-32
Line Contacts
Phosphor Bronze
UL498HG
File E13399
Face Material
Nylon
Grounding Screw
Plated Steel
Terminal Accom.
14-12 AWG
CSA C22.2 No. 42
File 152105
Termination
Side Wire
Flammability
Rated V-2 per UL 94
Device Type
Quadruplex Receptacle Outlet
Screw Terminal Torque
10-12 in-lbs
Dielectric Voltage
Withstands 2000V per UL498
Strap Material
Galvanized Steel with Riveted Ground Contacts
UL498
File E13399
Body Material
Nylon
Current Limiting
Full Rated Current
Temperature Rise
Max 30C after 50 cycles OL at 150 percent rated current
At Rated Voltage
1/2 HP
Mounting Screws
Zinc-Plated Steel 8-32
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Operating Temperature
-40°C to 60°C
Wire
3
ANSI
C-73
Pole
2

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Red, Housing Material Nylon, Mount Type Surface, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Quad, Resistance Properties Impact Resistant
