  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Single, Brown

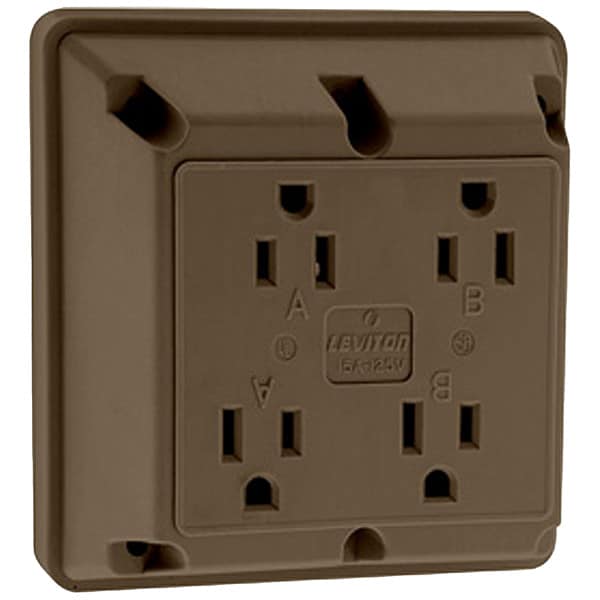

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Single, Brown 1254 - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Single, Brown

  • Mfr # 1254

  • Zoro # G804393312

product price: $21.99
/ea

Key Features

Receptacle Type
Quad
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1254
Zoro #
G804393312
UPC #
07847783042
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Width
3.4 in
Face Plate Width
0.3 in
Face Plate Height
4.5 in
Maximum Wire Size
12 AWG
Mount Hole Center-to-Center Height
3.4 in
Overall Depth
1.2 in
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Quad
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Surface
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-1 and WD-6, UL 498 File E13399
Resistance Properties
Chemical Resistant, Impact Resistant
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Wiring Method - Plugs and Receptacles
Side
Material
Nylon (Body and Face)
Includes
Strap Material
Application Environment
Heavy-Duty Industrial Grade
HP
1/2 hp
Outlet Type - Plugs and Receptacles
Quad
Sub-Category
Quad Receptacles
Polarized
Yes
NEMA Enclosure Rating
Not Rated
Includes Mounting Hardware
Yes
Maximum Operating Temperature
140 Degrees F
Connection Orientation
Straight
Contact Material
Phosphor Bronze
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
UL 94 Flammability Rating
V-2
GFCI
No
Grade
Federal Specification
Market
Industrial
Cover Type
No Cover
Number of Outlets
4
Horsepower Rating
1/2 hp
Terminal Accom.
14-12 AWG
Current Limiting
Full Rated Current
Dielectric Voltage
Withstands 2000V per UL498
Wire
3
Terminal Screws
Plated Brass
At Rated Voltage
1/2 HP
CSA C22.2 No. 42
File 152105
Device Type
Quadruplex Receptacle Outlet
Termination
Side Wire
Strap Material
Galvanized Steel with Riveted Ground Contacts
Operating Temperature
-40°C to 60°C
Body Material
Nylon
Face Material
Nylon
UL498
File E13399
Screw Terminal Torque
10-12 in-lbs
Flammability
Rated V-2 per UL 94
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Grounding Screw
Plated Steel
Torque Range
12-14 inch pounds
Line Contacts
Phosphor Bronze
Pole
2
Temperature Rise
Max 30C after 50 cycles OL at 150 percent rated current
ANSI
C-73

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Nylon, Mount Type Surface, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Quad, Resistance Properties Not Applicable
