  6. Straight Blade Receptacle, 5-15R, 6-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

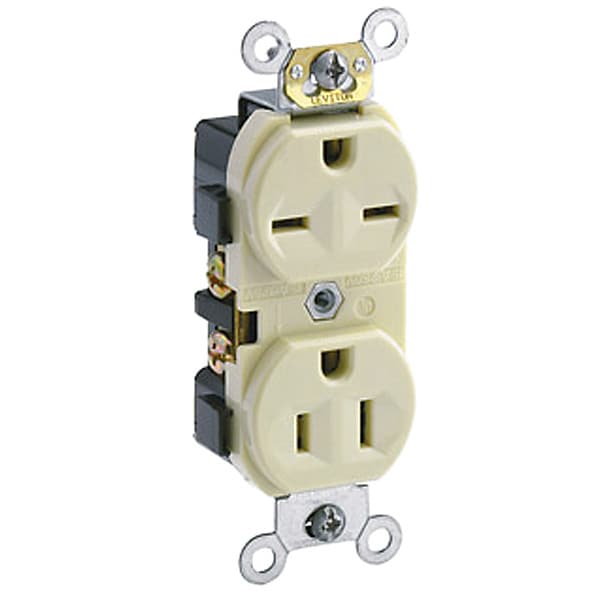

Leviton Straight Blade Receptacle, 5-15R, 6-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded 5031-I - main

Straight Blade Receptacle, 5-15R, 6-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # 5031-I

  • Zoro # G104256058

product price:  $10.19
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R, 6-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5031-I
Zoro #
G104256058
UPC #
07847720800
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.8 in
Overall Depth
1.1 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R, 6-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Self-Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-2 and WD-6, UL 498 File E13399
Flange Type
Non-Flanged
Special Features
Dual Voltage, Indented Face
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R_6-15R
Material
Nylon (Body and Face)
Wiring Method - Plugs and Receptacles
Side
Sub-Category
Duplex Receptacles
HP
1/2 hp, 1 1/2 hp
Application Environment
Commercial
Outlet Type - Plugs and Receptacles
Duplex
Number of Outlets
2
Cover Type
No Cover
GFCI
No
NEMA Enclosure Rating
Not Rated
Contact Material
Brass
Includes Mounting Hardware
Yes
Includes
Strap Material
Horsepower Rating
1 1/2 hp
Grade
Federal Specification
Polarized
Yes
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
UL 94 Flammability Rating
V-2
Market
Commercial
Connection Orientation
Straight
Face Material
Nylon
Clamp Nuts
Zinc-Plated Steel
Termination
Side Wire
Screw Terminal Torque
14-16 in-lbs
UL498
File E13399
Dielectric Voltage
Withstands 2000V per UL498
CSA C22.2 No. 42
File 152105
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Grounding Screw
Brass 8-32
Strap Material
Zinc-Plated Steel
Wire
3
At Rated Voltage
1/2 HP 125V / 1-1/2 HP 250V
Ground Clips
Brass-Plated
Device Type
Duplex Receptacle Outlet
Feature 4
Indented Face
Body Material
Nylon
Terminal Screws
Brass 10-32
ANSI
C-73
Flammability
Rated V-2 per UL 94
Operating Temperature
-40°C to 60°C
Pole
2
Feature 3
Dual Voltage
Current Limiting
Full Rated Current
Terminal Accom.
14-10 AWG
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Line Contacts
Brass Triple-Wipe .031 Thick

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, 6-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
