  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

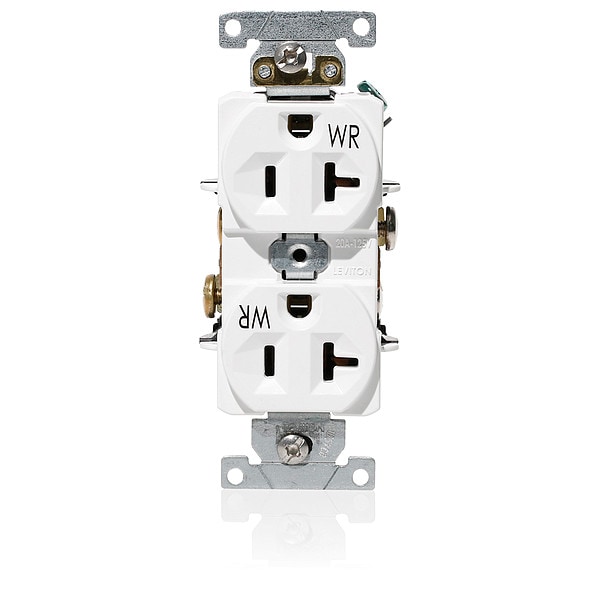

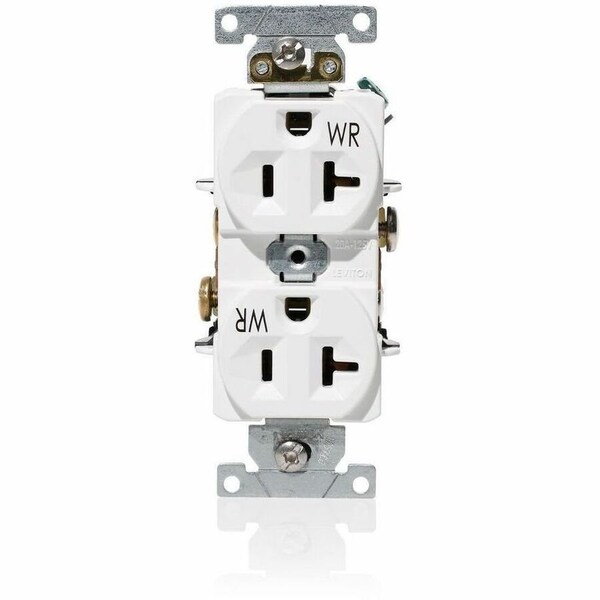

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded WBR20-W - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # WBR20-W

  • Zoro # G804256020

product price: $9.99
/ea
Sold in multiples of 10 for $99.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WBR20-W
Zoro #
G804256020
UPC #
07847739595
Country of Origin
Mexico

Dimensions

Overall Depth
0.9 in
Face Plate Width
1.3 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI, CSA Certified, NOM Certified, UL Listed
Resistance Properties
Weather Resistant
Flange Type
Non-Flanged
HP
1 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Application Environment
Heavy-Duty Industrial Grade
Weather Resistant - Plugs and Receptacles
Yes
Sub-Category
Duplex Receptacles
Outlet Type - Plugs and Receptacles
Duplex
Wiring Method - Plugs and Receptacles
Back and Side
Material
Nylon (Body), UV Resistant Thermoplastic (Face)
Number of Outlets
2
GFCI
No
Horsepower Rating
1 hp
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-40 Degrees F
Contact Material
Brass
Cover Type
No Cover
Market
Industrial
Connection Orientation
Straight
Polarized
Yes
NEMA Enclosure Rating
Not Rated
UL 94 Flammability Rating
V-2
Includes
Cover, Wallplate
Includes Mounting Hardware
Yes
Housing Material
Nylon
Grade
Federal Specification
Dielectric Voltage
Withstands 2000V per UL498
Face Material
UV Resistant Thermoplastic
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Line Contacts
Brass Triple-Wipe .031 Thick
Terminal Accom.
14-10 AWG
Screw Terminal Torque
14-18 in-lbs
Terminal Screws
Brass 10-32
Current Limiting
Full Rated Current
ANSI
C-73
Operating Temperature
-40°C to 60°C
UL 498
File E13399
Ground Clips
Brass-Plated
Pole
2
At Rated Voltage
1 HP
Grounding Screw
Brass 8-32
Body Material
Nylon
CSA C22.2 No. 42
File 152105
Strap Material
Nickel-Plated Brass
Termination
Back or Side Wire
Wire
3
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Flammability
Rated V-2 per UL 94

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties UV/Sunlight Resistant, Weather Resistant
