  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

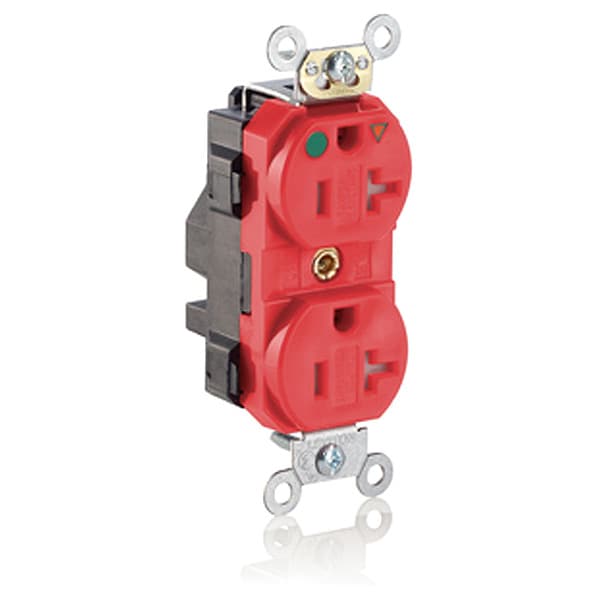

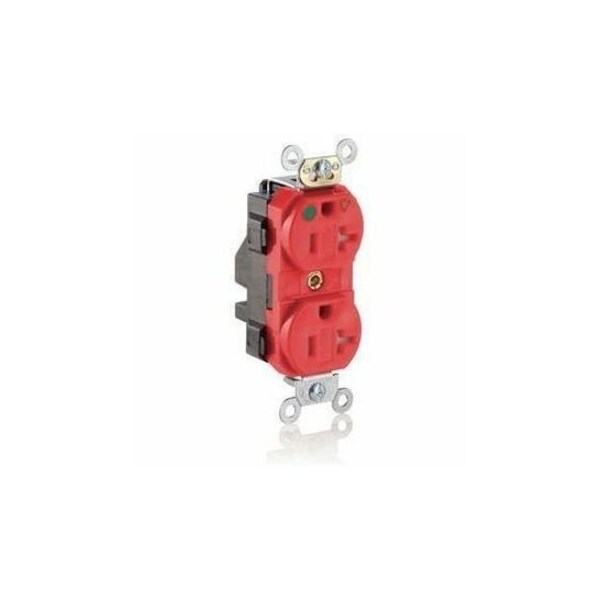

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground MT830-IGR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground

  • Mfr # MT830-IGR

  • Zoro # G404256017

product price: $24.39
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MT830-IGR
Zoro #
G404256017
UPC #
07847750805
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
4.1 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Grounding
Isolated Ground
Housing Color
Red
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL 498, UL Federal Specification WC-596
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
HP
1 hp
Sub-Category
Duplex Receptacles
Wiring Method - Plugs and Receptacles
Modular
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Material
Nylon (Body and Face)
Application Environment
Heavy-Duty Hospital Grade
Tamper Resistant
Yes
Outlet Type - Plugs and Receptacles
Duplex
Cover Type
No Cover
NEMA Enclosure Rating
Not Rated
Maximum Operating Temperature
140 Degrees F
Horsepower Rating
1 hp
Minimum Operating Temperature
-40 Degrees F
Number of Outlets
2
Polarized
Yes
Includes Mounting Hardware
Yes
GFCI
No
Contact Material
Brass
Connection Orientation
Straight
Housing Material
Nylon
Grade
Hospital Grade Fed. Spec.
Current Limiting
Full Rated Current
UL 498
File E13399
Locking Pins
Solid Brass
Wire
3
Termination
Modular
Dielectric Voltage
Withstands 2000V per UL498
Operating Temperature
-40°C to 60°C
Body Material
Nylon
ANSI
C-73
Isolated Ground System
Brass
Line Contacts
0.040€ Thick Solid Brass
Face Material
Nylon
Strap Material
Galvanized Steel
Function
Isolated Ground
Pole
2
Ground Clips
Brass
CSA C22.2 No. 42
File 152105
Device Type
Duplex Receptacle Outlet
Shutter Mechanism
Delrin® Acetal
Feature
Tamper-Resistant|Smooth Face
Lead Identification
Leads identified in accordance with UL 498 (black, white & green)
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Red, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant
