  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

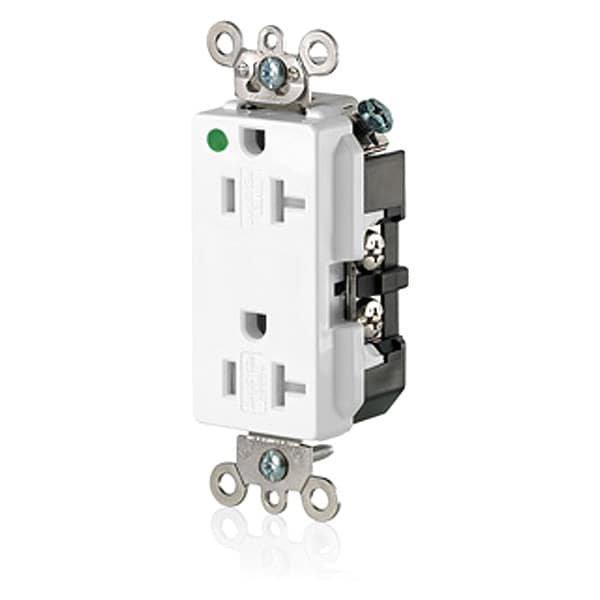

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded 16362-SGW - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # 16362-SGW

  • Zoro # G404256079

product price: $19.56
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16362-SGW
Zoro #
G404256079
UPC #
07847794222
Country of Origin
Mexico

Dimensions

Face Plate Width
1.3 in
Face Plate Height
2.6 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-1 and WD-6, RoHS Compliant, UL 498HG File E13399, UL Federal Specification WC-596 File E13399
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
HP
1 hp
Sub-Category
Duplex Receptacles
Tamper Resistant
Yes
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type - Plugs and Receptacles
Decorator Duplex
Material
Nylon (Base)
Application Environment
Extra Heavy-Duty Hospital Grade
Cover Material
Nylon
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Contact Material
Brass
UL 94 Flammability Rating
V-2
Includes
Strap Material
Housing Material
Nylon
NEMA Enclosure Rating
Not Rated
Cover Type
No Cover
Maximum Operating Temperature
140 Degrees F
Polarized
Yes
Number of Outlets
2
Minimum Operating Temperature
-40 Degrees F
Grade
Hospital Grade
GFCI
No
Horsepower Rating
1 hp
Includes Mounting Hardware
Yes
Connection Orientation
Straight
Ground Clips
Nickel-Plated Brass
Dielectric Voltage
Withstands 2000V per UL498
UL498HG
File E13399
Feature
Tamper-Resistant|Smooth Face
Device Type
Duplex Receptacle Outlet
Mounting Screws
Triple Combination Head, Steel
ANSI
C-73
Base Material
Nylon
Operating Temperature
-40°C to 60°C
CSA C22.2 No. 42
File E152105
Wire
3
Screw Terminal Torque
14-18 in-lbs
Terminal Screws
Nickel-Plated Brass
Termination
Back or Side Wire
Current Interrupting
Certified for current interrupting at full rated current
Pole
2
Temperature Rise
Max 30C at 250 cycles OL at 200 pct rated current
Line Contacts
Brass Triple-Wipe 0.040€ Thick
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Strap Material
Nickel-Plated Brass
Grounding Screw
Nickel-Plated Brass
Maximum Working Voltage
125V as rated
Clamp Nuts
Zinc-Plated Steel
Flammability
Rated V-2 per UL 94
Torque Range
14-16 inch pounds
Terminal Accom.
14-10 AWG

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
