  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

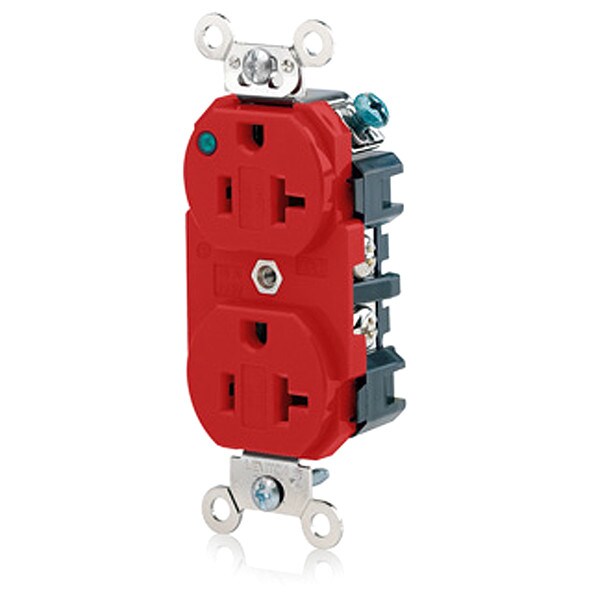

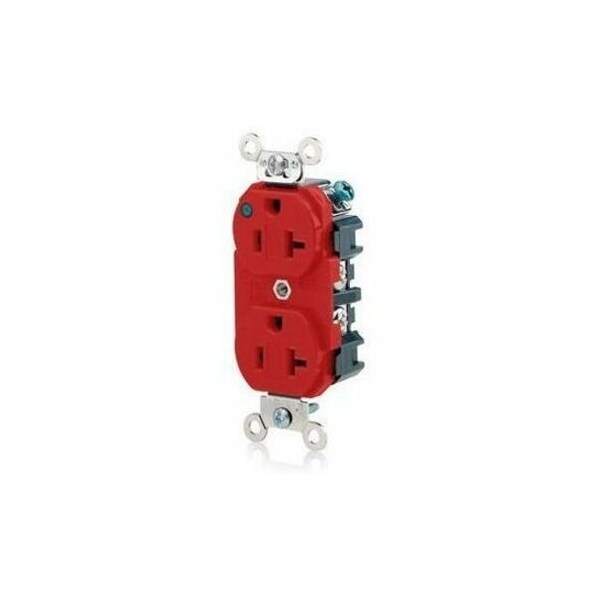

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded 8300-PLR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # 8300-PLR

  • Zoro # G004256059

product price: $22.19
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8300-PLR
Zoro #
G004256059
UPC #
07847710908
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Face Plate Width
1.5 in
Overall Depth
1.1 in
Face Plate Height
2.8 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Red
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL Federal Specification WC-596, UL 498HG
Flange Type
Non-Flanged
Outlet Type - Plugs and Receptacles
Duplex
Application Environment
Extra Heavy-Duty Hospital Grade
Material
Nylon (Body and Face)
HP
1 hp
Wiring Method - Plugs and Receptacles
Back and Side
Special Features
Power Indication
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Power Indicator
Yes
Sub-Category
Duplex Receptacles
UL 94 Flammability Rating
V-2
Grade
Hospital Grade Fed. Spec.
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Maximum Operating Temperature
140 Degrees F
GFCI
No
Includes Mounting Hardware
Yes
Horsepower Rating
1 hp
Cover Type
No Cover
Connection Orientation
Straight
Contact Material
Nickel-Plated Brass
NEMA Enclosure Rating
Not Rated
Number of Outlets
2
Housing Material
Nylon
Visual Indicator Lights
Power Connected
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Yoke
Nickel-Plated Brass
Operating Temperature
-40°C to 60°C
Strap Material
Brass
Termination
Back or Side Wire
Pole
2
Feature 4
Smooth Face
Clamp Nuts
Zinc-Plated Steel
Wire
3
Face Material
Nylon
UL498HG
File E13399
Flammability
Rated V-2 per UL94
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Grounding Screw
Plated Brass
Body Material
Nylon
Dielectric Voltage
Withstands 2000V per UL498
Ground Clips
Nickel-Plated Brass
Feature 3
Power Indication
Line Contacts
Nickel-Plated Brass Triple-Wipe .040 Thick
Torque Range
14-16 inch pounds
Terminal Screws
Plated Brass
Terminal Accom.
14-10 AWG
Device Type
Duplex Receptacle Outlet
Screw Terminal Torque
14-18 in-lbs
ANSI
C-73
CSA C22.2 No. 42
File 152105
Current Limiting
Full Rated Current

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Red, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
