  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

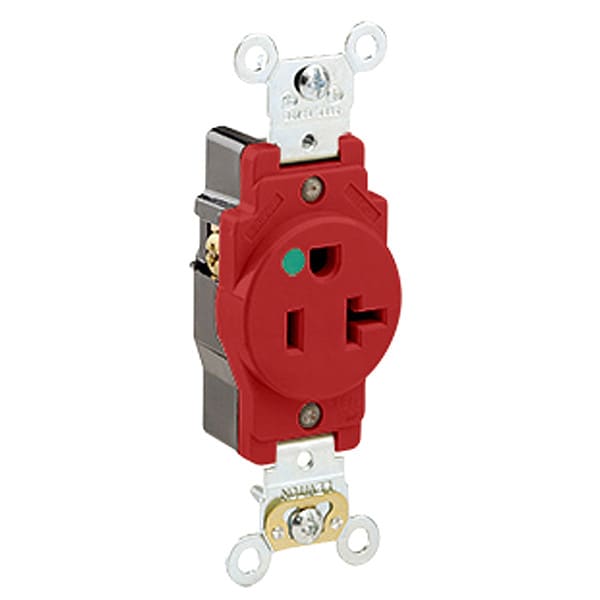

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded 8310-R - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # 8310-R

  • Zoro # G804256068

product price: $13.99
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8310-R
Zoro #
G804256068
UPC #
07847713324
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Red
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, RoHS Compliant, UL 498HG File E13399, UL Federal Specification WC-596 File E13399
Flange Type
Non-Flanged
Outlet Type - Plugs and Receptacles
Single
NEMA Configuration
5-20
Material
Nylon (Body and Face)
Application Environment
Heavy-Duty Hospital Grade
HP
1 hp
Sub-Category
Single Receptacles
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Wiring Method - Plugs and Receptacles
Back and Side
Housing Material
Nylon
Number of Outlets
2
Additional Electrical Protection
Standard Protection
Wire Connection Types
Screw Terminals
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Key Resistance Properties
Standard Resistance
GFCI
No
Number of Poles & Wires
2 Pole / 3 Wire
Grade
Hospital Grade Fed. Spec.
Contact Material
Phosphor Bronze
NEMA Enclosure Rating
Not Rated
Cover Type
No Cover
Maximum Operating Temperature
140 Degrees F
Horsepower Rating
1 hp
Polarized
Yes
CSA C22.2 No. 42
File 152105
Flammability
Rated V-2 per UL94
Body Material
Nylon
Current Limiting
Full Rated Current
UL498HG
File E13399
Face Material
Nylon
Termination
Back or Side Wire
Strap Material
Zinc-Plated Steel
Line Contacts
Phosphor Bronze
ANSI
C-73
Ground Clips
Brass
Operating Temperature
-40°C to 60°C
Torque Range
14-16 inch pounds
Screw Terminal Torque
14-18 in-lbs
Terminal Accom.
14-10 AWG
Terminal Screws
Plated Brass
Device Type
Single Receptacle Outlet
Feature 4
Smooth Face
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Grounding Screw
Plated Steel
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Pole
2
Clamp Nuts
Zinc-Plated Steel
Dielectric Voltage
Withstands 2000V per UL498
Wire
3

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Red, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Not Applicable
