  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

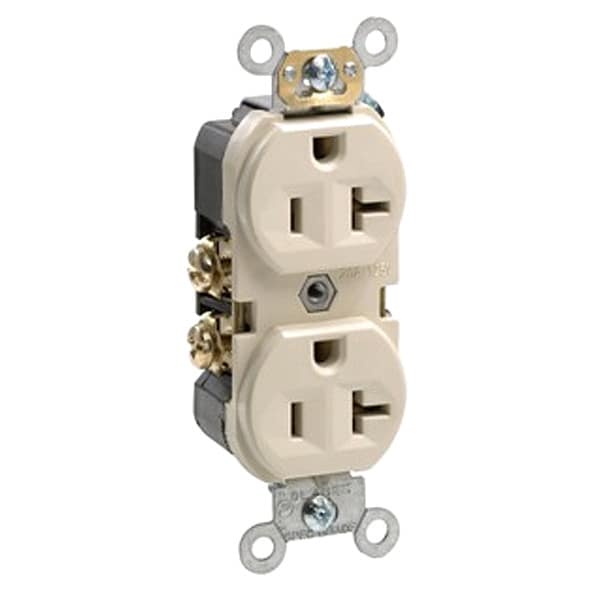

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded BR20-I - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # BR20-I

  • Zoro # G509823947

product price: $3.99
/ea
Sold in multiples of 10 for $39.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR20-I
Zoro #
G509823947
UPC #
07847781980
Country of Origin
United States

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-1 and WD-6, UL 498 File E13399
Flange Type
Non-Flanged
Polarized
Yes
Maximum Operating Temperature
140 Degrees F
NEMA Enclosure Rating
Not Rated
Wiring Method - Plugs and Receptacles
Back and Side
Special Features
Indented Face
Minimum Operating Temperature
-40 Degrees F
GFCI
No
Horsepower Rating
1 hp
Outlet Type - Plugs and Receptacles
Duplex
Connection Orientation
Straight
Market
Commercial
Material
Polypropylene (Body and Face)
Number of Outlets
2
Sub-Category
Duplex Receptacles
Housing Material
Polycarbonate
Cover Type
No Cover
Grade
Federal Specification
HP
1 hp
Contact Material
Brass
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Application Environment
Commercial

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
