  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

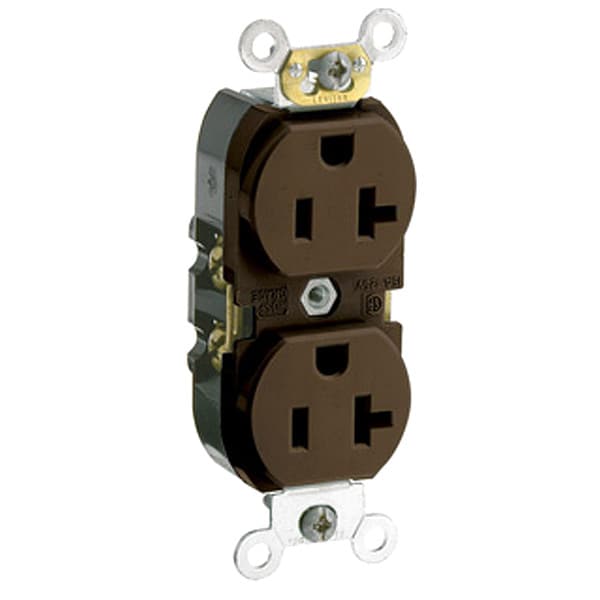

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded CR020 - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # CR020

  • Zoro # G604256046

product price: $3.29
/ea
Sold in multiples of 10 for $32.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
CR020
Zoro #
G604256046
UPC #
07847781546
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Self-Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-2 and WD-6, UL 498 File E13399
HP
1 hp
Sub-Category
Duplex Receptacles
Wiring Method - Plugs and Receptacles
Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Material
Nylon (Body and Face)
Application Environment
Commercial
Outlet Type - Plugs and Receptacles
Duplex
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Maximum Operating Temperature
140 Degrees F
Market
Commercial
Connection Orientation
Straight
GFCI
No
Horsepower Rating
1 hp
NEMA Enclosure Rating
Not Rated
Grade
Federal Specification
Number of Outlets
2
Contact Material
Brass
Cover Type
No Cover
Housing Material
Nylon
Current Limiting
Full Rated Current
Strap Material
Steel
Terminal Accom.
14-10 AWG
Operating Temperature
-40°C to 60°C
Dielectric Voltage
Withstands 2000V per UL498
CSA C22.2 No. 42
File 152105
Face Material
Nylon
At Rated Voltage
1 HP
Feature
Smooth Face
Terminal ID
Brass-Hot, Green-Ground, White-Neutral
Wire
3
Ground Clips
Brass-Plated
Device Type
Duplex Receptacle Outlet
Standards and Certifications
UL/CSA
Pole
2
Termination
Side Wire
Line Contacts
Brass Double Wipe .031 Thick
Body Material
Nylon
Yoke
Zinc-Plated Steel
Grounding Screw
Steel 8-32
UL498
File E13399
ANSI
C-73
Terminal Screws
Steel 8-32

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
