  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

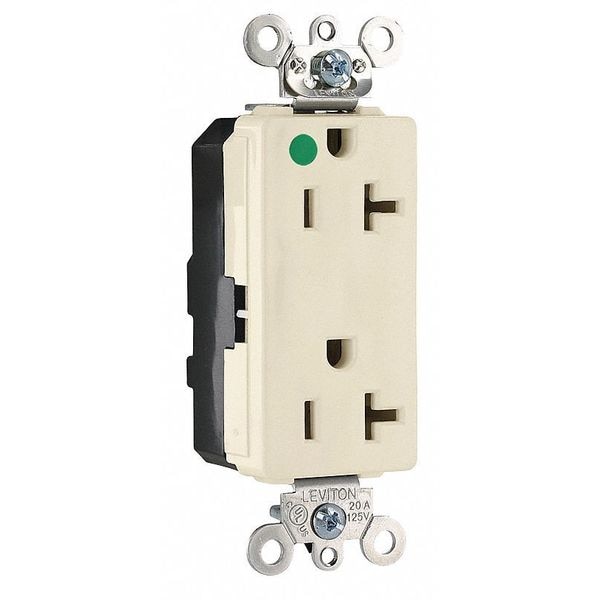

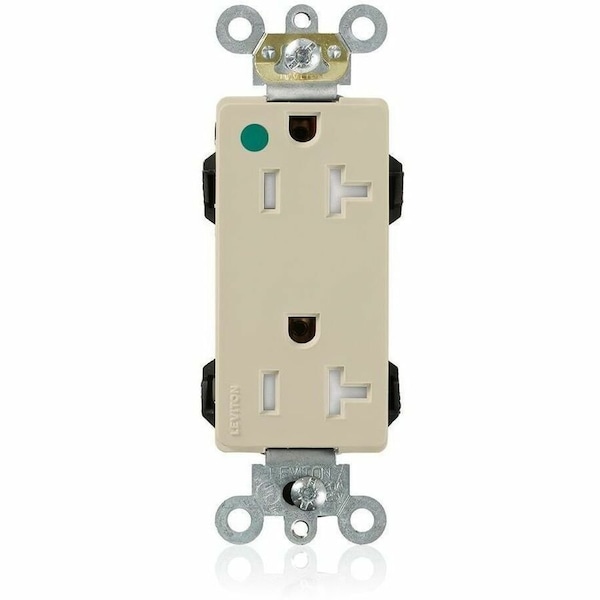

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded M1636-ILI - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # M1636-ILI

  • Zoro # G804256013

product price: $24.39
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M1636-ILI
Zoro #
G804256013
UPC #
07847759196
Country of Origin
Mexico

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Grounding
Self-Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA, NEMA WD-1 & WD-6, NOM 057, UL 498, UL Federal Specification WC-596
Flange Type
Non-Flanged
Outlet Type - Plugs and Receptacles
Decorator Duplex
Material
Nylon (Body and Face)
Sub-Category
Duplex Receptacles
HP
1 hp
Special Features
Illuminated
Application Environment
Extra Heavy-Duty Hospital Grade
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Wiring Method - Plugs and Receptacles
Modular
GFCI
No
Grade
Hospital Grade
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Contact Material
Brass
Includes Mounting Hardware
Yes
Housing Material
Nylon
Number of Outlets
2
Connection Orientation
Straight
NEMA Enclosure Rating
Not Rated
Includes
Wallplate
Horsepower Rating
1 hp
Cover Type
No Cover
Maximum Operating Temperature
140 Degrees F
Pole
2
Operating Temperature
-40°C to 60°C
Ground Clips
Nickel-Plated Brass
Feature 3
Illuminated
Termination
Modular
Feature 4
Smooth Face
Face Material
Nylon
Strap Material
Nickel-Plated Brass
Flammability
Rated V-2 per UL94
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Locking Pins
Solid Brass
Dielectric Voltage
Withstands 2000V per UL498
Line Contacts
0.040" Brass
CSA
152105
ANSI
C-73
Device Type
Duplex Receptacle Outlet
Wire
3
Lead Identification
Leads identified in accordance with UL 498 (black, white & green)
Illumination
100,000 HR Green LED's
Current Limiting
Full Rated Current
Body Material
Nylon

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable, Standards ANSI, cULus Listed, NOM Certified
