  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

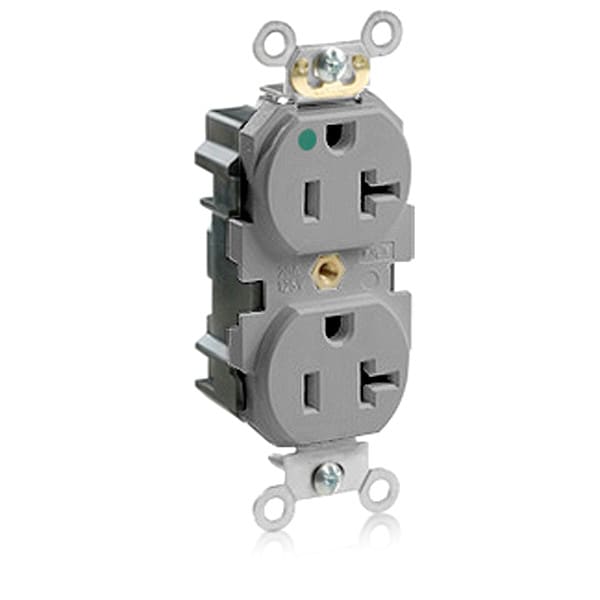

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded M8300-HGY - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # M8300-HGY

  • Zoro # G104256034

product price: $9.99
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
M8300-HGY
Zoro #
G104256034
UPC #
07847745450
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Grounding
Self-Grounded
Housing Color
Gray
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, NEMA WD-1 & WD-6, NOM 057, cULus
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Material
Nylon (Base)
Application Environment
Heavy-Duty Hospital Grade
Wiring Method - Plugs and Receptacles
Modular
HP
1 hp
Cover Material
Nylon
Outlet Type - Plugs and Receptacles
Duplex
Sub-Category
Duplex Receptacles
Housing Material
Nylon
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-40 Degrees F
Number of Outlets
2
Includes Mounting Hardware
Yes
Connection Orientation
Straight
Grade
Hospital Grade
Polarized
Yes
Includes
Wallplate
GFCI
No
Horsepower Rating
1 hp
NEMA Enclosure Rating
Not Rated
Contact Material
Brass
Cover Type
No Cover
Flammability
Rated V-2 per UL94
Termination
Modular
Current Interrupting
Certified for current interrupting at full rated current
Ground Clips
Brass
Bushing
Solid Brass
Wire
3
Maximum Working Voltage
125V as rated
NOM Certified
57
Line Contacts
0.040€ Thick Solid Brass
Pole
2
Device Type
Duplex Receptacle Outlet
Dielectric Voltage
Withstands 2000V per UL498
Base Material
Nylon
Feature 4
Smooth Face
cULus
Listed
Locking Pins
Solid Brass
Mounting Screws
Triple Combination Head, Steel
ANSI
C-73
Mounting Strap
Galvanized Steel with Riveted Ground Contacts
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Operating Temperature
-40°C to 60°C

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable, Standards ANSI, cULus Listed, NOM Certified
