  6. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

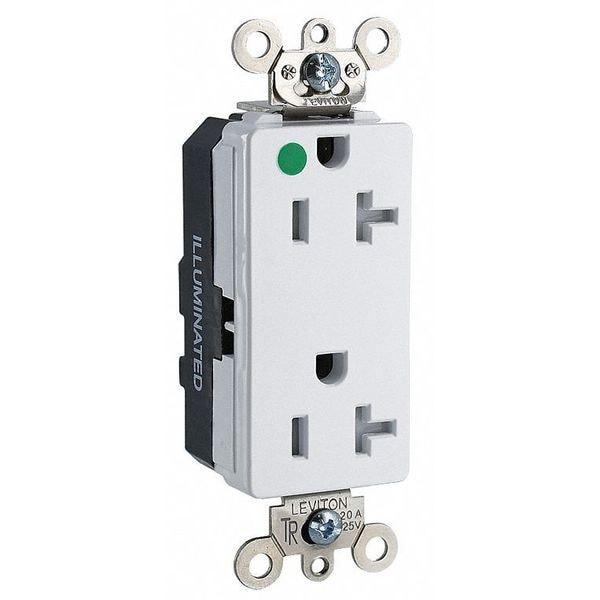

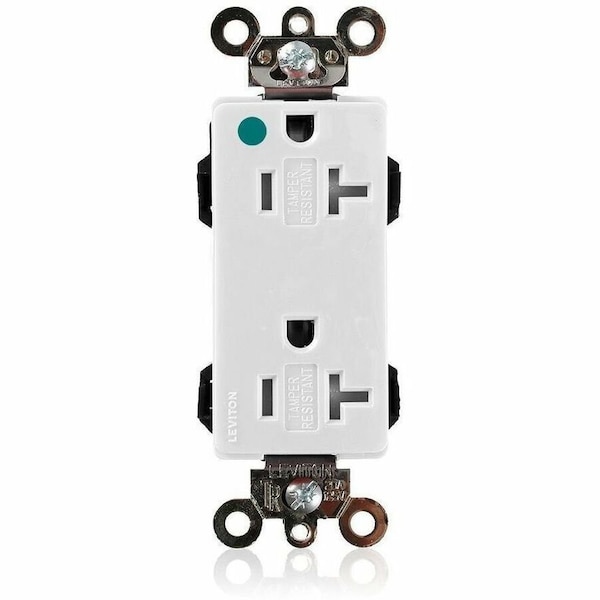

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded MT163-ILW - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # MT163-ILW

  • Zoro # G304256070

product price:  $25.69
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MT163-ILW
Zoro #
G304256070
UPC #
07847759296
Country of Origin
Mexico

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Grounding
Self-Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA, NEMA WD-1 & WD-6, NOM 057, UL 498, UL Federal Specification WC-596
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Sub-Category
Duplex Receptacles
Special Features
Illuminated
Application Environment
Extra Heavy-Duty Hospital Grade
Material
Nylon (Body and Face)
Tamper Resistant
Yes
Outlet Type - Plugs and Receptacles
Decorator Duplex
Wiring Method - Plugs and Receptacles
Modular
HP
1 hp
NEMA Enclosure Rating
Not Rated
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
Includes Mounting Hardware
Yes
Contact Material
Brass
Horsepower Rating
1 hp
GFCI
No
Grade
Hospital Grade Fed. Spec.
Connection Orientation
Straight
Polarized
Yes
Number of Outlets
2
Maximum Operating Temperature
140 Degrees F
Cover Type
No Cover
CSA
152105
Feature
Tamper-Resistant|Illuminated|Smooth Face
Ground Clips
Nickel-Plated Brass
Device Type
Duplex Receptacle Outlet
Line Contacts
0.040" Brass
Wire
3
Termination
Modular
Pole
2
Lead Identification
Leads identified in accordance with UL 498 (black, white & green)
Dielectric Voltage
Withstands 2000V per UL498
ANSI
C-73
Body Material
Nylon
Current Limiting
Full Rated Current
Face Material
Nylon
Operating Temperature
-40°C to 60°C
Locking Pins
Solid Brass
Illumination
100,000 HR Green LED's
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Shutter Mechanism
Delrin® Acetal
Strap Material
Nickel-Plated Brass

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
