  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

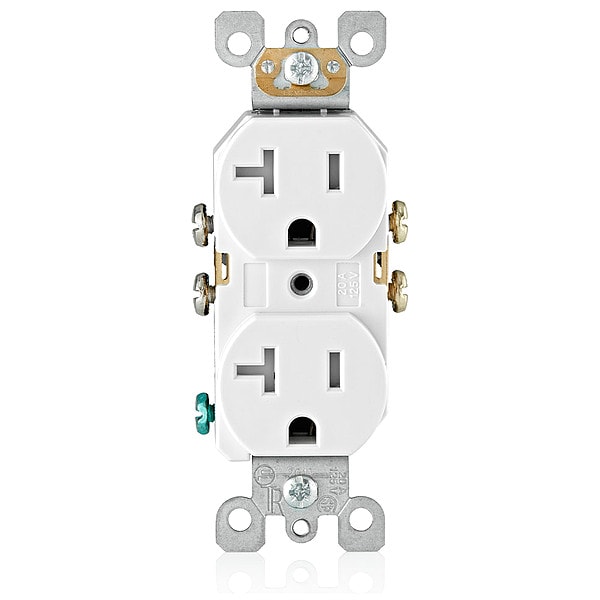

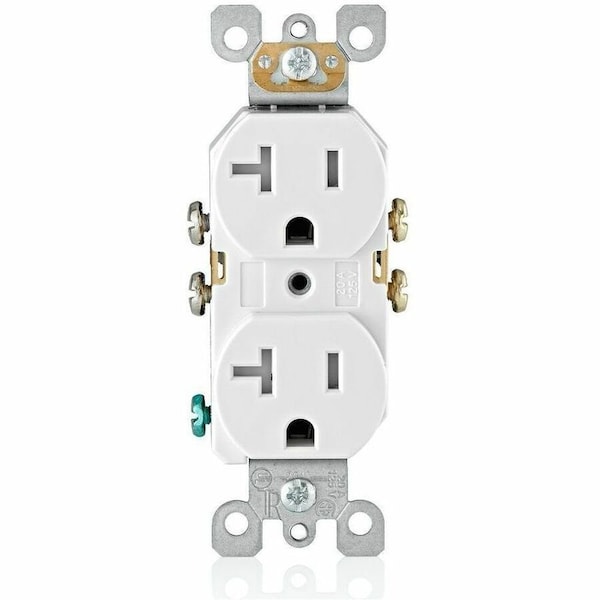

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded T5820-W - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # T5820-W

  • Zoro # G504256030

product price: $4.69
/ea
Sold in multiples of 3 for $14.07

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T5820-W
Zoro #
G504256030
UPC #
07847745021
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Overall Depth
0.9 in
Face Plate Width
1.4 in
Face Plate Height
2.8 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Self-Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA Certified, NOM Certified, RoHS Compliant, UL Listed
Resistance Properties
Impact Resistant, Tamper Resistant
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Tamper Resistant
Yes
Outlet Type - Plugs and Receptacles
Duplex
Wiring Method - Plugs and Receptacles
Side
Material
Thermoplastic Nylon (Body and Face)
Sub-Category
Duplex Receptacles
Number of Outlets
2
Market
Residential
Housing Material
Thermoplastic Nylon
GFCI
No
Polarized
Yes
Grade
Federal Specification
Connection Orientation
Straight
Cover Type
No Cover
NEMA Enclosure Rating
Not Rated
Includes Mounting Hardware
Yes
Face Material
Thermoplastic Nylon
CSA C22.2 No. 42
File 152105; Class 6233-01
Product Type
Standard
Body Material
Thermoplastic Nylon
Termination
Side
Pole
2
Device Type
Duplex Receptacle
Wire
3
Feature
Tamper-Resistant
Torque Range
14 -18 in.-lbs
UL 498
File E13399

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant
