  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

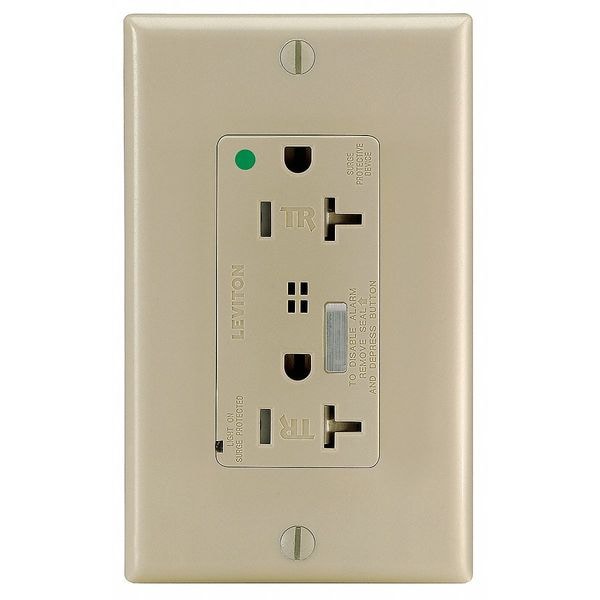

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded T8380-I - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # T8380-I

  • Zoro # G204256057

product price: $67.39
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T8380-I
Zoro #
G204256057
UPC #
07847743482
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL 1449, UL 498
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Sub-Category
Duplex Receptacles
Surge Suppression
Yes
Application Environment
Heavy-Duty Hospital Grade
Tamper Resistant
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Wiring Method - Plugs and Receptacles
Back and Side
Material
Nylon (Face), Polycarbonate (Body)
Outlet Type - Plugs and Receptacles
Decorator Duplex
Includes Mounting Hardware
Yes
Polarized
Yes
Housing Material
Polycarbonate
Cover Type
No Cover
NEMA Enclosure Rating
Not Rated
Contact Material
Brass
Connection Orientation
Straight
GFCI
No
Maximum Surge Current
27 kA
Surge Protection
Yes
Grade
Hospital Grade
Maximum Operating Temperature
140 Degrees F
Market
Commercial, Industrial, Residential
Number of Outlets
2
Minimum Operating Temperature
-40 Degrees F
ANSI
C-73
Wire
3
Joules Rating
720
Dielectric Voltage
Withstands 2000V per UL498
Short Circuit Current Rating
5kA
Operating Temperature
-40°C to 60°C
Clamp Nuts
Zinc-Plated Steel
Pole
2
Yoke
Zinc-Plated Steel
Diagnostics
Indicator Light & Audible Alarm
MCOV
150V rms
Current Limiting
Full Rated Current
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Ground Clips
Brass-Plated Steel
Face Material
Nylon
Feature
Tamper-Resistant
Maximum Surge Current, Per Mode (Per Phase)
27kA (L-N:18kA, L-G:9kA)
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Torque Range
14-16 inch pounds
Body Material
Polycarbonate
Grounding Screw
Brass-Plated Steel
Device Type
Duplex Receptacle Outlet
Noise Rejection
-30dB at 500kHz-30MHz
Agency Certifications
UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
Shutter Mechanism
Delrin® Acetal
Function
Surge Protective
Screw Terminal Torque
14-18 in-lbs
Terminal Accom.
14-10 AWG
Termination
Back or Side Wire
Terminal Screws
Brass-Plated Steel
Nominal Discharge Current Rating
3kA
Line Contacts
Brass Triple-Wipe

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
