  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Black

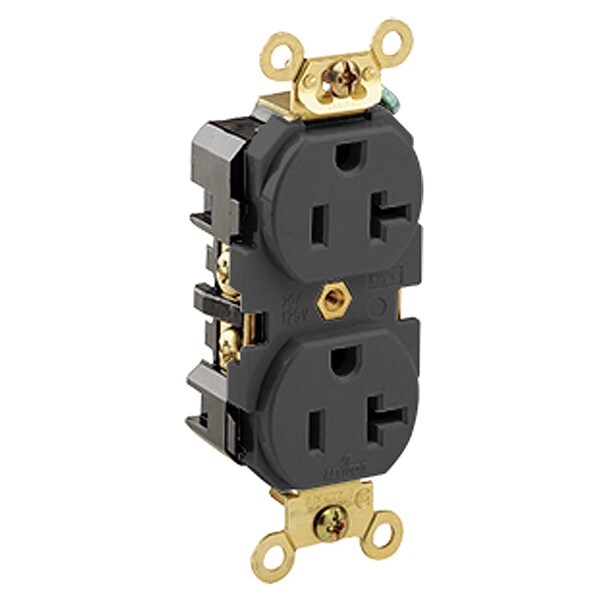

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Black 5362-E - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Black

  • Mfr # 5362-E

  • Zoro # G004393228

product price: $11.49
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5362-E
Zoro #
G004393228
UPC #
07847713961
Country of Origin
Mexico

Dimensions

Face Plate Width
1.5 in
Face Plate Height
2.8 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.1 in
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL 498, UL Federal Specification WC-596
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Sub-Category
Duplex Receptacles
Material
Thermoplastic Nylon (Body and Face)
Includes
Grounding Clip
Wiring Method - Plugs and Receptacles
Back and Side
Application Environment
Extra Heavy-Duty Industrial Grade
Outlet Type - Plugs and Receptacles
Duplex
Connection Orientation
Straight
GFCI
No
Number of Outlets
2
Includes Mounting Hardware
Yes
Grade
Federal Specification
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
Not Rated
Housing Material
Thermoplastic Nylon
Market
Commercial, Industrial
Contact Material
Brass
UL 94 Flammability Rating
V-2
Polarized
Yes
Cover Type
No Cover
Maximum Operating Temperature
140 Degrees F
Clamp Nuts
Zinc-Plated Steel
CSA C22.2 No. 42
File 152105
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Termination
Back or Side Wire
ANSI
C-73
Strap Material
Brass
UL Fed Spec WC-596
File E13399
Wire
3
Ground Clips
Brass-Plated
Feature 4
Smooth Face
Terminal Accom.
14-10 AWG
Flammability
Rated V-2 per UL 94
Yoke
Brass
UL498
File E13399
Terminal Screws
Brass 10-32
Device Type
Duplex Receptacle Outlet
Screw Terminal Torque
14-18 in-lbs
Operating Temperature
-40°C to 60°C
Face Material
Thermoplastic Nylon
Line Contacts
Brass Triple-Wipe
Dielectric Voltage
Withstands 2000V per UL498
Current Limiting
Full Rated Current
Pole
2
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Grounding Screw
Brass 8-32
Body Material
Thermoplastic Nylon

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material Thermoplastic Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
