  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Black

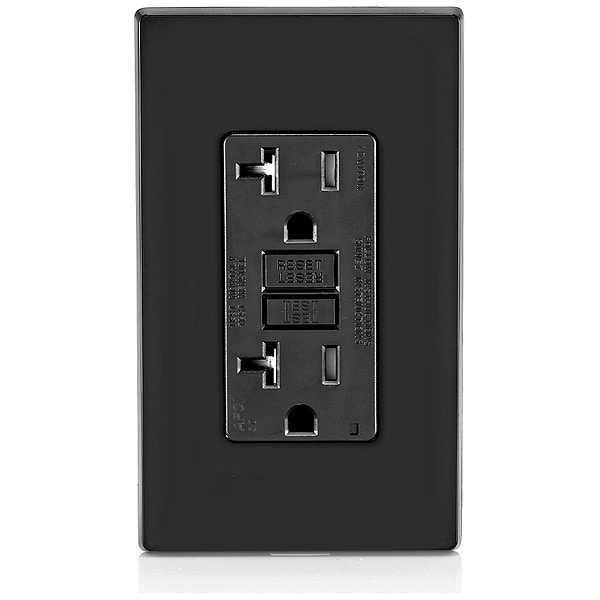

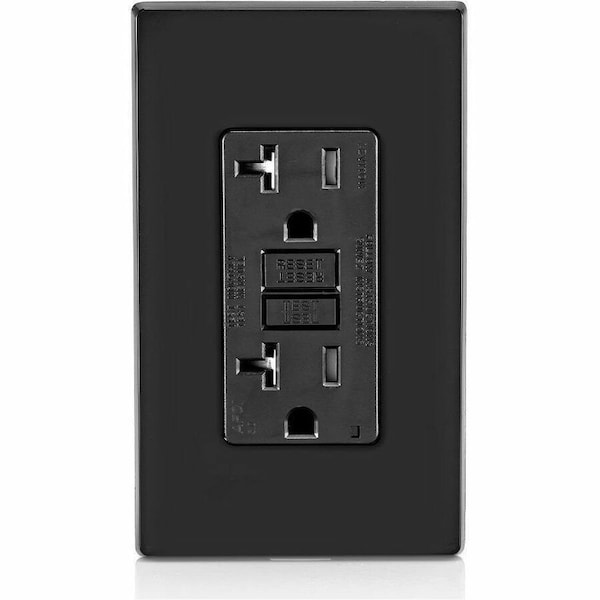

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Black AFTR2-E - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Black

  • Mfr # AFTR2-E

  • Zoro # G004393303

product price: $38.69
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AFTR2-E
Zoro #
G004393303
UPC #
07847757497
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Black
Mount Type
Flush
Standards
ANSI C73, CSA C22.2 No. 42, NOM 057, UL 498, UL Federal Specification WC-596, UL1699.A
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
HP
1 hp
Tamper Resistant
Yes
Application Environment
General Purpose
Power Indicator
Yes
Surge Suppression
Yes
Special Features
Device Design Reduces Nuisance Tripping, Impact-Resistant, Over-Voltage Resistant, Silver Alloy Contact, Two-Year Product Warranty
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Weather Resistant - Plugs and Receptacles
No
Outlet Type - Plugs and Receptacles
Blank Face
Includes
Screws, Self Grounding Clip
Self-Testing
No
Reset Type
Automatic
AFCI
Yes
Connection Orientation
Straight
Reverse Service
Yes
Hub Type
Feed Through
Housing Material
Polycarbonate
Maximum Operating Temperature
150.8 Degrees F
UL 94 Flammability Rating
V-2
Visual Indicator Lights
Power Connected
Horsepower Rating
1 hp
Grade
General Use
Cover Type
No Cover
Polarized
Yes
Compatible with Series
AFTR2
GFCI
No
Contact Material
Brass
Self Testing
No
Number of Outlets
2
Surge Protection
No
Minimum Operating Temperature
-31 Degrees F
Wall Plate Material
Nylon
Terminal Screws
Plated Steel
Pole
2
Termination
Back & Side
Wire
3
Standards and Certifications
UL/CSA, NEMA WD6
Line Contacts
Brass Triple-Wipe
Clamps
Brass
UL 498
Yes
CSA C22.2 No. 42
Yes
Series
AFTR2
Wallplate
Included
UL Fed Spec WC-596
Yes
Feature
Tamper-Resistant
Face Material
Thermoplastic
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
CSA Technical Information Letter No. M-02A
Yes
UL1699.A
File E342815
Terminal Accom.
14-10 AWG
Yoke
Zinc-Plated Steel
Strap Material
Galvanized Steel
Body Material
Polycarbonate
UL498
File E13393
At Rated Voltage
1 HP
Grounding Screw
Plated Steel
Torque Range
14 - 18 in.-lbs
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Flammability
Rated V-2 per UL 94
Dielectric Voltage
Withstands 1250VAC per UL 1699A
ANSI
C-73
Operating Temperature
-35C to +66C

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Polycarbonate, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant, Standards CSA Certified, NEMA WD-6, UL Listed, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side
