  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Black

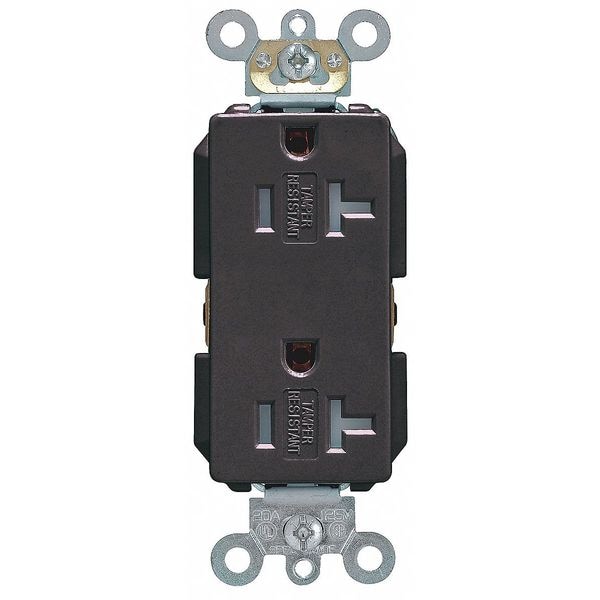

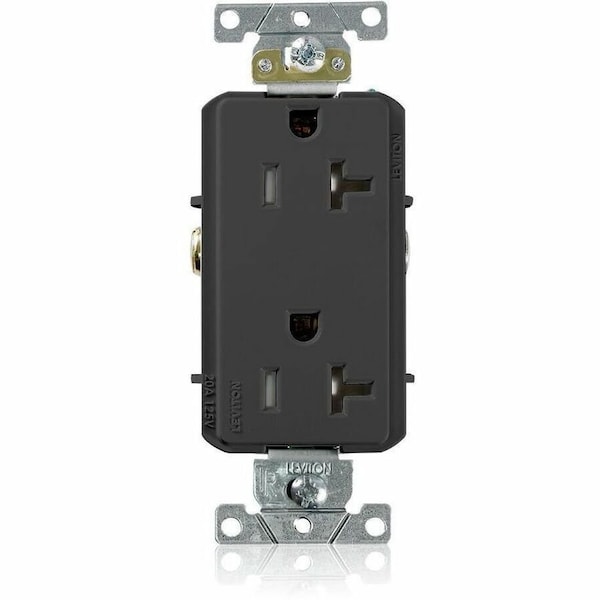

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Black TDR20-E - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Black

  • Mfr # TDR20-E

  • Zoro # G904393243

product price: $9.69
/ea
Sold in multiples of 10 for $96.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TDR20-E
Zoro #
G904393243
UPC #
07847739214
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG
Overall Depth
0.9 in
Face Plate Height
2.8 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-1 & WD-6, NOM 057, UL 498, UL Federal Specification WC-596, cULus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Application Environment
Heavy-Duty Industrial Grade
HP
1 hp
Sub-Category
Duplex Receptacles
Material
PBT Polyester Blend (Body and Face)
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Tamper Resistant
Yes
Outlet Type - Plugs and Receptacles
Decorator Duplex
Wiring Method - Plugs and Receptacles
Back and Side
Voltage
125 VAC
Includes
Cover, Wallplate
Cover Type
No Cover
Polarized
Yes
Housing Material
PBT Polyester
Grade
Federal Specification
Includes Mounting Hardware
Yes
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Contact Material
Brass
Horsepower Rating
1 hp
GFCI
No
Maximum Operating Temperature
167 Degrees F
Connection Orientation
Straight
Number of Outlets
2
NEMA Enclosure Rating
Not Rated
UL 94 Flammability Rating
V-0
Wire
3
Termination
Back or Side Wire
Body Material
PBT Polyester Blend
Terminal Accom.
#14 AWG - #10 AWG
Mounting Screws
Triple-Drive Plated Steel
Feature 2
Tamper-Resistant
Screw Terminal Torque
14-18 in-lbs
Dielectric Voltage
Withstands 3000 V minimum
Terminal ID
Brass - Hot, Silver - Neutral, Green - Ground,
Face Material
PBT Polyester Blend
Shutter Mechanism
Acetal
Temperature Rise
Max 30 °C temperature rise at full rated current
Ground Clips
Brass
Terminal Screws
#8 Triple-Drive Brass
Applicable Standards
UL 498, Fed Spec W-C-596, CSA C22.2. No. 42
Grounding Screw
#8 Hex Head, Triple-Drive Brass
Ground Contacts
0.030" Brass
Terminal Clamps
Brass
Feature 4
Smooth Face
ANSI
C-73
Flammability
Rated V-0 per UL 94
Pole
2
Operating Temperature
-40°C to 75°C
Wire Type
Stranded or Solid
Device Type
Duplex Receptacle Outlet
Line Contacts
Phosphor Bronze Triple Wipe 0.031
Certification/Listing
cULus, NOM-ANCE
Strap Material
Steel (Galvanized G60)

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
