  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown

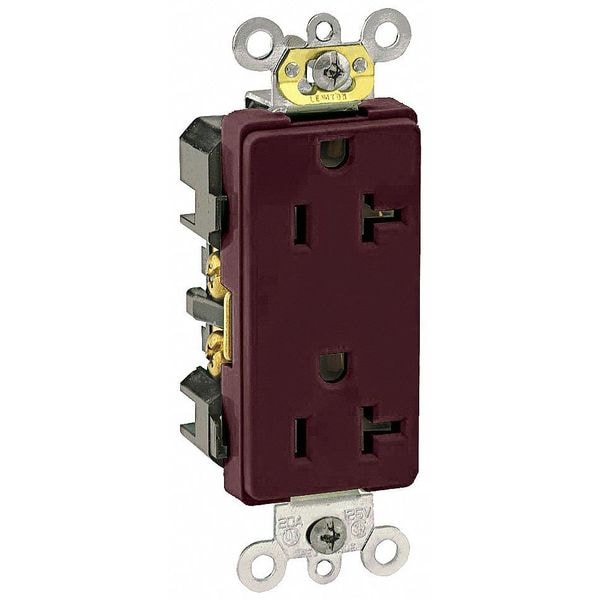

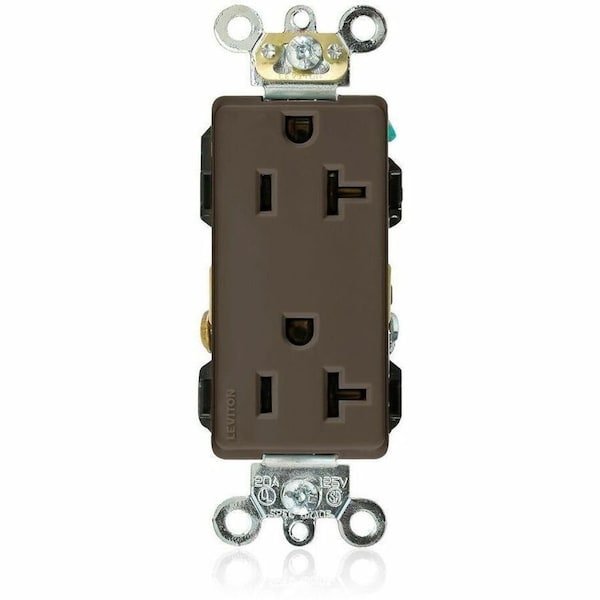

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown 16362 - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown

  • Mfr # 16362

  • Zoro # G704393313

product price: $7.19
/ea
Sold in multiples of 2 for $14.38

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
16362
Zoro #
G704393313
UPC #
07847781944
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Face Plate Height
2.6 in
Face Plate Width
1.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-6, UL 498 File E13399
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
NEMA Configuration
5-20
Application Environment
Industrial
Sub-Category
Duplex Receptacles
Includes
Strap Material
Outlet Type - Plugs and Receptacles
Decorator Duplex
Wiring Method - Plugs and Receptacles
Back and Side
Material
Thermoplastic Nylon (Body and Face)
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
HP
1 hp
Minimum Operating Temperature
-40 Degrees F
Contact Material
Brass
Maximum Operating Temperature
140 Degrees F
Connection Orientation
Straight
Polarized
Yes
Horsepower Rating
1 hp
Key Resistance Properties
Standard Resistance
Market
Commercial, Industrial
Number of Outlets
2
Cover Type
No Cover
UL 94 Flammability Rating
V-2
Additional Electrical Protection
Standard Protection
Grade
Federal Specification
Includes Mounting Hardware
Yes
Housing Material
Thermoplastic
NEMA Enclosure Rating
Not Rated
GFCI
No
Number of Poles & Wires
2 Pole / 3 Wire
Wire Connection Types
Screw Terminals
At Rated Voltage
1 HP
Current Limiting
Full Rated Current
CSA C22.2 No. 42
File 152105
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Operating Temperature
-40°C to 60°C
Clamp Nuts
Zinc-Plated Steel
Wire
3
Line Contacts
Brass Triple-Wipe 0.040 Thick
ANSI
C-73
Ground Clips
Brass-Plated
Dielectric Voltage
Withstands 2000V per UL498
Temperature Rise
Max 30C at 250 cycles OL at 200 pct rated current
Pole
2
Terminal Accom.
14-10 AWG
Terminal Screws
Brass 10-32
Flammability
Rated V-2 per UL 94
Grounding Screw
Brass 8-32
Strap Material
Zinc-Plated Steel
Screw Terminal Torque
14-18 in-lbs
Termination
Back & Side
Face Material
Thermoplastic Nylon
Body Material
Thermoplastic Nylon
UL498
File E13399

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
