  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown

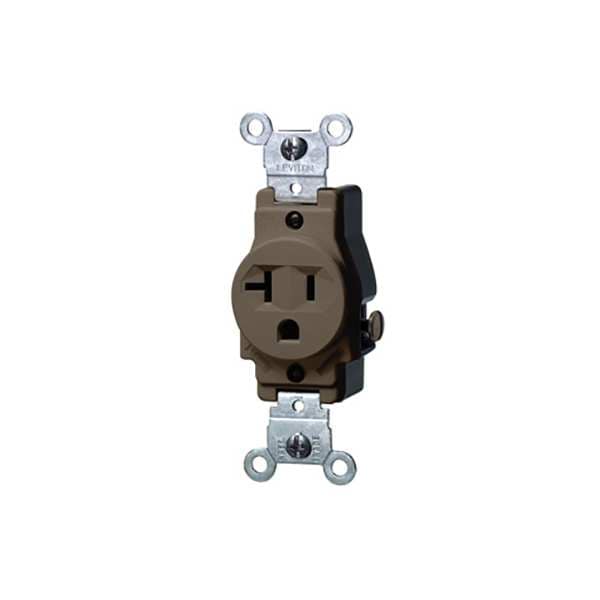

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown 5801 - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown

  • Mfr # 5801

  • Zoro # G404836424

product price: $5.79
/ea
Sold in multiples of 10 for $57.90

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5801
Zoro #
G404836424
UPC #
07847724900
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.1 in
Face Plate Width
1.4 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Face Plate Height
2.4 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C-73, CSA C22.2 No. 42 File 152105, NEMA WD-2 and WD-6, NOM 057, UL Fed Spec WC-596 File E13399, UL Listed 498 File E13399
Flange Type
Non-Flanged
Sub-Category
Single Receptacles
Material
Nylon (Body and Face)
Wiring Method - Plugs and Receptacles
Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type - Plugs and Receptacles
Single
HP
1 hp
Application Environment
Commercial
UL 94 Flammability Rating
V-2
Connection Orientation
Straight
NEMA Enclosure Rating
Not Rated
Cover Type
No Cover
Maximum Operating Temperature
140 Degrees F
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
GFCI
No
Market
Commercial
Includes Mounting Hardware
Yes
Contact Material
Brass
Number of Outlets
1
Grade
Federal Specification
Horsepower Rating
1 hp
Strap Material
Zinc-Plated Steel
Wire
3
Grounding Screw
Brass 8-32
Line Contacts
Brass Double Wipe .031 Thick
Termination
Side Wire
Feature 4
Smooth Face
UL498
File E13399
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Terminal Screws
Brass 8-32
Operating Temperature
-40°C to 60°C
At Rated Voltage
1 HP
Screw Terminal Torque
14-18 in-lbs
UL Fed Spec WC-596
File E13399
CSA C22.2 No. 42
File 152105
Flammability
Rated V-2 per UL 94
Dielectric Voltage
Withstands 2000V per UL498
Body Material
Nylon
Pole
2
Device Type
Single Receptacle Outlet
ANSI
C-73
Terminal Accom.
14-10 AWG
Face Material
Nylon
Current Limiting
Full Rated Current
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Not Applicable, Standards UL498: File E13399, Voltage Rating 125V AC
