  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray

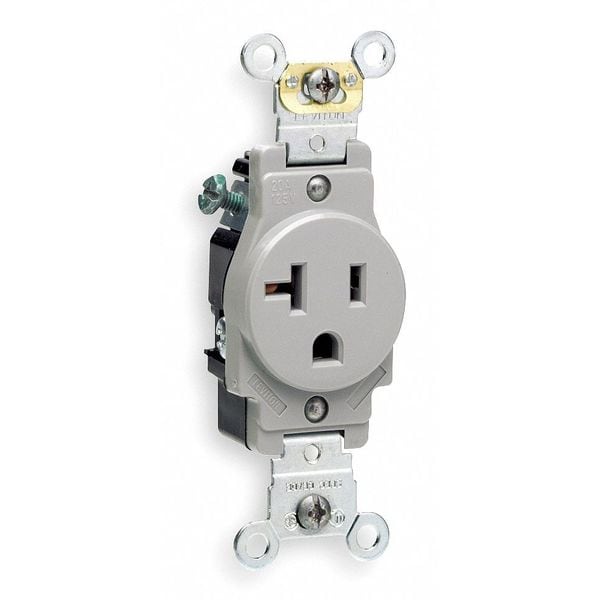

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray 5361-GY - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray

  • Mfr # 5361-GY

  • Zoro # G804836550

product price: $12.89
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5361-GY
Zoro #
G804836550
UPC #
07847749876
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Overall Depth
1.1 in
Maximum Wire Size
10 AWG
Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Gray
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL 498, UL Federal Specification WC-596
Flange Type
Non-Flanged
Includes
Isolated Ground
Sub-Category
Single Receptacles
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type - Plugs and Receptacles
Single
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
HP
1 hp
Application Environment
Heavy-Duty Industrial Grade
Material
Thermoplastic Nylon (Body and Face)
Includes Mounting Hardware
Yes
UL 94 Flammability Rating
V-2
Minimum Operating Temperature
-40 Degrees F
GFCI
No
Number of Outlets
1
Connection Orientation
Straight
Housing Material
Thermoplastic Nylon
Contact Material
Brass
Market
Commercial, Industrial
Polarized
Yes
Horsepower Rating
1 hp
Maximum Operating Temperature
140 Degrees F
NEMA Enclosure Rating
Not Rated
Cover Type
No Cover
Grade
Federal Specification
Current Limiting
Full Rated Current
Wire
3
ANSI
C-73
Grounding Screw
Plated Steel
CSA C22.2 No. 42
File 152105
At Rated Voltage
1 HP
Flammability
Rated V-2 per UL 94
Terminal Accom.
14-10 AWG
Line Contacts
Brass Triple-Wipe
Body Material
Thermoplastic Nylon
Ground Clips
Brass
Dielectric Voltage
Withstands 2000V per UL498
Pole
2
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Device Type
Single Receptacle Outlet
Clamp Nuts
Galvanized Steel
UL Fed Spec WC-596
File E13399
Torque Range
14-16 inch pounds
Screw Terminal Torque
14-18 in-lbs
Feature 4
Smooth Face
Face Material
Thermoplastic Nylon
Strap Material
Zinc-Plated Steel
Terminal Screws
Plated Brass
Operating Temperature
-40°C to 60°C
UL498
File E13399
Termination
Back or Side Wire
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Not Applicable
