  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray

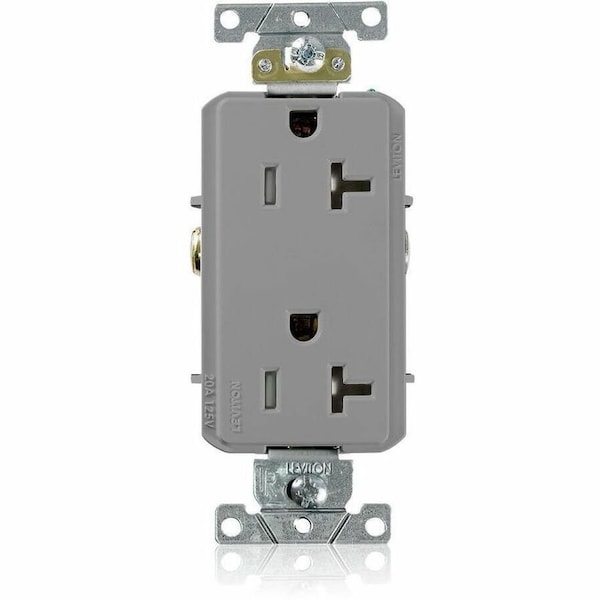

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray TDR20-GY - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray

  • Mfr # TDR20-GY

  • Zoro # G604393253

product price: $10.19
/ea
Sold in multiples of 10 for $101.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TDR20-GY
Zoro #
G604393253
UPC #
07847739215
Country of Origin
Mexico

Dimensions

Overall Depth
0.9 in
Face Plate Height
2.8 in
Minimum Wire Size
14 AWG
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Gray
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-1 & WD-6, NOM 057, UL 498, UL Federal Specification WC-596, cULus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Includes
Cover, Wallplate
Wiring Method - Plugs and Receptacles
Back and Side
Application Environment
Heavy-Duty Industrial Grade
Outlet Type - Plugs and Receptacles
Decorator Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Sub-Category
Duplex Receptacles
Material
PBT Polyester Blend (Body and Face)
Tamper Resistant
Yes
HP
1 hp
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
1 hp
Includes Mounting Hardware
Yes
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
Not Rated
Polarized
Yes
Cover Type
No Cover
Housing Material
PBT Polyester
Number of Outlets
2
Market
Industrial
Connection Orientation
Straight
GFCI
No
UL 94 Flammability Rating
V-0
Contact Material
Brass
Grade
Federal Specification
Grounding Screw
#8 Hex Head, Triple-Drive Brass
Strap Material
Steel (Galvanized G60)
Flammability
Rated V-0 per UL 94
Dielectric Voltage
Withstands 3000 V minimum
Terminal ID
Brass - Hot, Silver - Neutral, Green - Ground,
Nema Rating
WD-1, WD-6
Terminal Accom.
#14 AWG - #10 AWG
Ground Clips
Brass
Ground Contacts
0.030" Brass
Device Type
Duplex Receptacle Outlet
Terminal Clamps
Brass
ANSI
C-73
Shutter Mechanism
Acetal
Operating Temperature
-40°C to 75°C
Face Material
PBT Polyester Blend
Terminal Screws
#8 Triple-Drive Brass
Pole
2
Feature 2
Tamper-Resistant
Temperature Rise
Max 30 °C temperature rise at full rated current
Wire
3
Applicable Standards
UL 498, Fed Spec W-C-596, CSA C22.2. No. 42
Line Contacts
Phosphor Bronze Triple Wipe 0.031
Termination
Back or Side Wire
Body Material
PBT Polyester Blend
Screw Terminal Torque
14-18 in-lbs
Certification/Listing
cULus, NOM-ANCE
Mounting Screws
Triple-Drive Plated Steel
Wire Type
Stranded or Solid
Feature 4
Smooth Face

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
