  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray

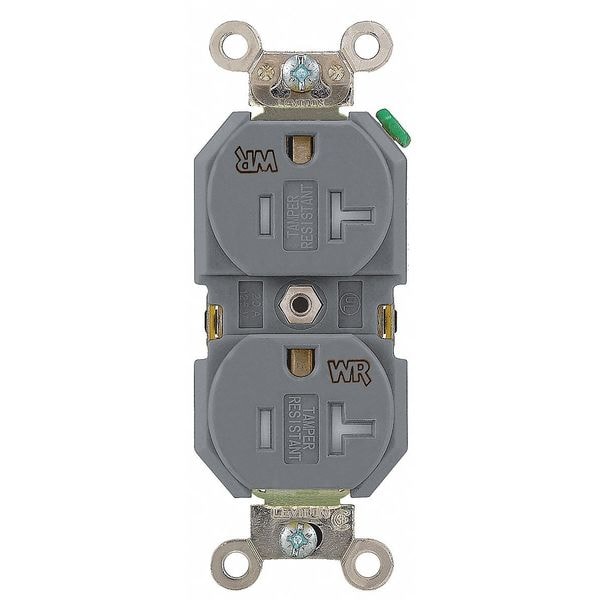

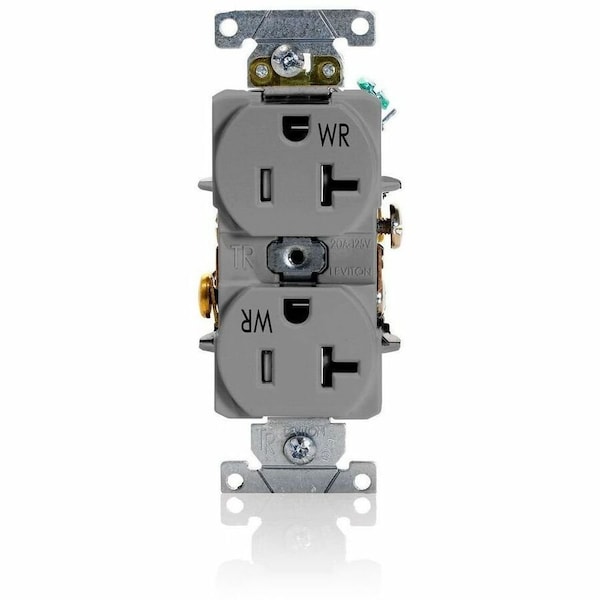

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray TWR20-GY - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray

  • Mfr # TWR20-GY

  • Zoro # G104393197

product price: $10.80
/ea
Sold in multiples of 10 for $108.00

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TWR20-GY
Zoro #
G104393197
UPC #
07847750630
Country of Origin
Mexico

Dimensions

Face Plate Width
1.3 in
Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Overall Depth
0.9 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Gray
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-2 WD-6, NOM 057, UL 498, UL Federal Specification WC-596
Resistance Properties
Tamper Resistant, Weather Resistant
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type - Plugs and Receptacles
Duplex
Sub-Category
Duplex Receptacles
Tamper Resistant
Yes
HP
1 hp
Weather Resistant - Plugs and Receptacles
Yes
Application Environment
Heavy-Duty Industrial Grade
Includes
Cover, Wallplate
Wiring Method - Plugs and Receptacles
Back and Side
Material
Nylon (Body and Face)
Cover Type
No Cover
Number of Outlets
2
Includes Mounting Hardware
Yes
Connection Orientation
Straight
Horsepower Rating
1 hp
NEMA Enclosure Rating
Not Rated
UL 94 Flammability Rating
V-2
GFCI
No
Polarized
Yes
Contact Material
Brass
Grade
Federal Specification
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Maximum Operating Temperature
140 Degrees F
Grounding Screw
Nickel-Plated Brass
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Face Material
Nylon
Ground Clips
Nickel-Plated Brass-Plated
Clamp Nuts
Zinc-Plated Steel
UL 498
File E13399
Feature
Weather and Tamper-Resistant|Smooth Face
Device Type
Duplex Receptacle Outlet
CSA C22.2 No. 42
File 152105
ANSI
C-73
Current Limiting
Full Rated Current
Body Material
Nylon
Dielectric Voltage
Withstands 2000V per UL498
Shutter Mechanism
Delrin® Acetal
Strap Material
Nickel Plated Brass
Mounting Screws
Stainless Steel
Terminal Screws
Nickel-Plated Brass 10-32
Screw Terminal Torque
14-18 in-lbs
Termination
Back or Side Wire
At Rated Voltage
1 HP
Terminal Accom.
14-10 AWG
Line Contacts
Nickel-Plated Brass Triple-Wipe .040 Thick

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Weather Resistant
