  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

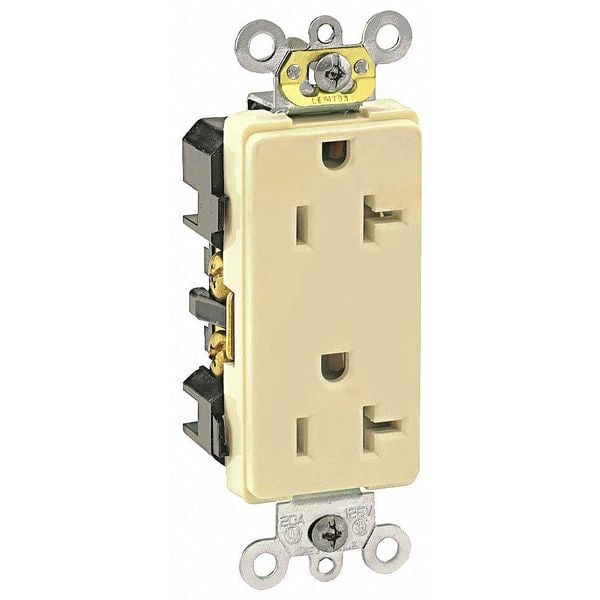

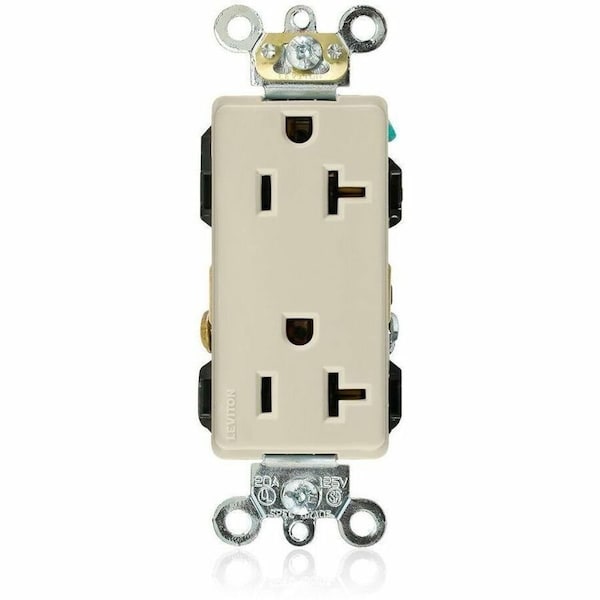

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory 16362-I - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

  • Mfr # 16362-I

  • Zoro # G904393328

product price: $8.39
/ea
Sold in multiples of 2 for $16.78

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16362-I
Zoro #
G904393328
UPC #
07847781945
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Face Plate Height
2.6 in
Face Plate Width
1.3 in
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-6, UL 498 File E13399
Flange Type
Non-Flanged
Material
Thermoplastic Nylon (Body and Face)
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Voltage
125 VAC
Application Environment
Heavy-Duty Industrial Grade
HP
1 hp
Wiring Method - Plugs and Receptacles
Back and Side
Sub-Category
Duplex Receptacles
Outlet Type - Plugs and Receptacles
Decorator Duplex
Includes
Strap Material
Maximum Operating Temperature
140 Degrees F
Number of Outlets
2
NEMA Enclosure Rating
Not Rated
GFCI
No
UL 94 Flammability Rating
V-2
Connection Orientation
Straight
Includes Mounting Hardware
Yes
Cover Type
No Cover
Grade
Federal Specification
Polarized
Yes
Housing Material
Thermoplastic
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Contact Material
Brass
Horsepower Rating
1 hp
Strap Material
Zinc-Plated Steel
CSA C22.2 No. 42
File 152105
Ground Clips
Brass-Plated
Current Limiting
Full Rated Current
Grounding Screw
Brass 8-32
Temperature Rise
Max 30C at 250 cycles OL at 200 pct rated current
Face Material
Thermoplastic Nylon
Wire
3
Operating Temperature
-40°C to 60°C
Body Material
Thermoplastic Nylon
Device Type
Duplex Receptacle Outlet
Clamp Nuts
Zinc-Plated Steel
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Flammability
Rated V-2 per UL 94
Line Contacts
Brass Triple-Wipe 0.040 Thick
Terminal Screws
Brass 10-32
Screw Terminal Torque
14-18 in-lbs
At Rated Voltage
1 HP
Terminal Accom.
14-10 AWG
Termination
Back or Side Wire
UL498
File E13399
Pole
2
Feature 4
Smooth Face
Dielectric Voltage
Withstands 2000V per UL498
ANSI
C-73

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
