  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

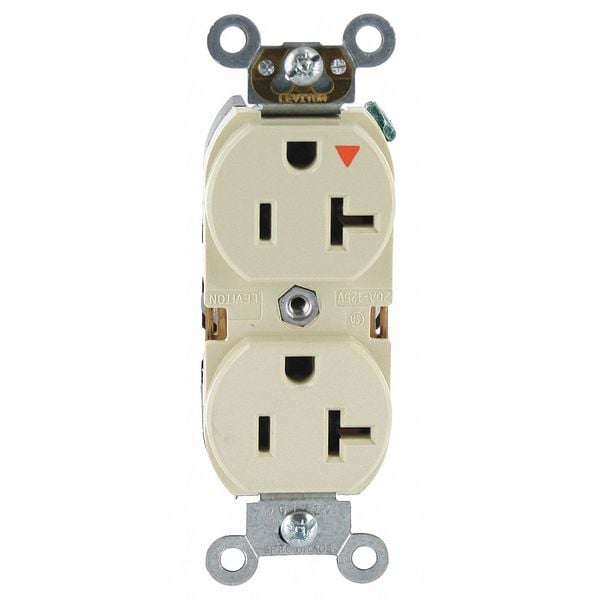

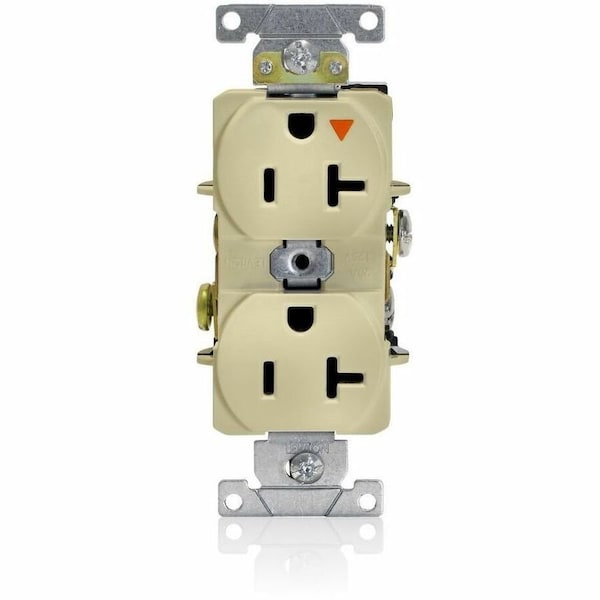

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory 5362-IGI - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

  • Mfr # 5362-IGI

  • Zoro # G704393207

product price: $8.49
/ea
Sold in multiples of 10 for $84.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5362-IGI
Zoro #
G704393207
UPC #
07847705326
Country of Origin
Mexico

Dimensions

Overall Depth
1.1 in
Minimum Wire Size
14 AWG
Face Plate Height
2.8 in
Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL 498, UL Federal Specification WC-596
Flange Type
Non-Flanged
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Sub-Category
Duplex Receptacles
Material
Thermoplastic Nylon (Body and Face)
HP
1 hp
Outlet Type - Plugs and Receptacles
Duplex
Application Environment
Heavy-Duty Industrial Grade
GFCI
No
Maximum Operating Temperature
140 Degrees F
NEMA Enclosure Rating
Not Rated
Polarized
Yes
UL 94 Flammability Rating
V-2
Connection Orientation
Straight
Market
Commercial, Industrial
Housing Material
Thermoplastic Nylon
Contact Material
Phosphor Bronze
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1 hp
Number of Outlets
2
Grade
Federal Specification
Includes Mounting Hardware
Yes
Cover Type
No Cover
Dielectric Voltage
Withstands 2000V per UL498
Termination
Back or Side Wire
Body Material
Thermoplastic Nylon
Terminal Screws
Plated Brass
Isolated Ground System
Brass
Flammability
Rated V-2 per UL 94
Screw Terminal Torque
14-18 in-lbs
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Face Material
Thermoplastic Nylon
Wire
3
Clamp Nuts
Galvanized Steel
Device Type
Duplex Receptacle Outlet
ANSI
C-73
Operating Temperature
-40°C to 60°C
UL498
File E13399
At Rated Voltage
1 HP
Feature 4
Smooth Face
CSA C22.2 No. 42
File 152105
Terminal Accom.
14-10 AWG
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Line Contacts
Phosphor Bronze
UL Fed Spec WC-596
File E13399
Grounding Screw
Brass 8-32
Strap Material
Galvanized Steel
Pole
2
Current Limiting
Full Rated Current
Torque Range
14-16 inch pounds

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Thermoplastic Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
