  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

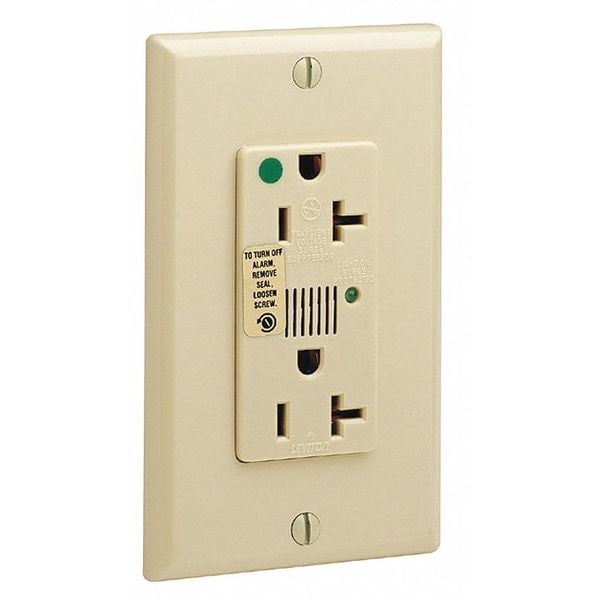

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory 8380-I - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

  • Mfr # 8380-I

  • Zoro # G204836518

product price: $69.29
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8380-I
Zoro #
G204836518
UPC #
07847704531
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL Federal Specification WC-596, UL 498HG
Flange Type
Non-Flanged
Outlet Type - Plugs and Receptacles
Decorator Duplex
Sub-Category
Duplex Receptacles
Wiring Method - Plugs and Receptacles
Back and Side
Application Environment
Heavy-Duty Hospital Grade
Material
Nylon (Body and Face)
Surge Suppression
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
HP
1 hp
Contact Material
Brass
Cover Type
No Cover
Housing Material
Nylon
Grade
Hospital Grade
Minimum Operating Temperature
-40 Degrees F
Maximum Surge Current
27 kA
Surge Protection
Yes
Maximum Operating Temperature
140 Degrees F
Polarized
Yes
GFCI
No
NEMA Enclosure Rating
Not Rated
Connection Orientation
Straight
Number of Outlets
2
Horsepower Rating
1 hp
Market
Commercial, Industrial, Residential
Terminal Screws
Brass-Plated Steel
Clamp Nuts
Zinc-Plated Steel
Diagnostics
Indicator Light & Audible Alarm
Current Limiting
Full Rated Current
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Ground Clips
Brass-Plated Steel
Dielectric Voltage
Withstands 2000V per UL498
Short Circuit Current Rating
5kA
ANSI
C-73
Function
Surge Protective
Torque Range
14-16 inch pounds
Terminal Accom.
14-10 AWG
Yoke
Zinc-Plated Steel
At Rated Voltage
1 HP
Agency Certifications
UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
Shutter Mechanism
Delrin® Acetal
Noise Rejection
-30dB at 500kHz-30MHz
Line Contacts
Brass Triple-Wipe
Pole
2
MCOV
150V rms
Nominal Discharge Current Rating
3kA
Body Material
Nylon
Maximum Surge Current, Per Mode (Per Phase)
27kA (L-N:18kA, L-G:9kA)
Face Material
Nylon
UL498HG
File E13399
Device Type
Duplex Receptacle Outlet
Grounding Screw
Brass-Plated Steel
Joules Rating
720
Wire
3
Operating Temperature
-40°C to 60°C
Termination
Back or Side Wire
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
