  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

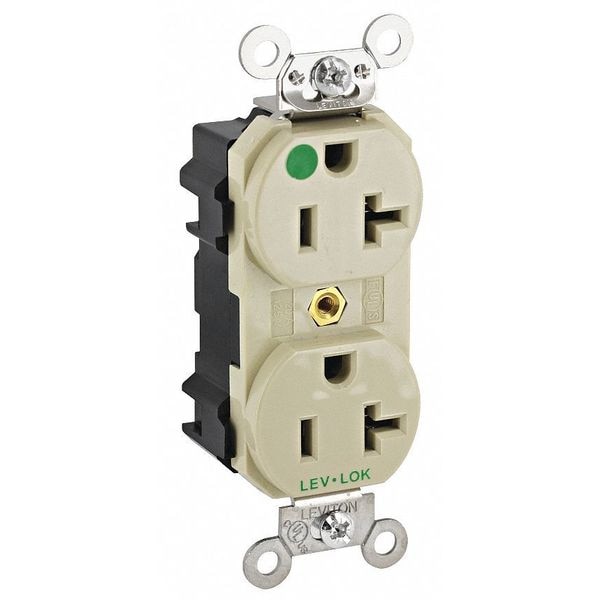

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory M8300-I - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

  • Mfr # M8300-I

  • Zoro # G104836526

product price: $16.49
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M8300-I
Zoro #
G104836526
UPC #
07847736382
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Grounding
Self-Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, NEMA WD-1 & WD-6, NOM 057, cULus
Flange Type
Non-Flanged
HP
1 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type - Plugs and Receptacles
Duplex
Wiring Method - Plugs and Receptacles
Modular
Material
Nylon (Base)
Application Environment
Extra Heavy-Duty Hospital Grade
Includes
Wallplate
Sub-Category
Duplex Receptacles
Includes Mounting Hardware
Yes
Cover Type
No Cover
GFCI
No
Grade
Hospital Grade
Maximum Operating Temperature
140 Degrees F
Housing Material
Nylon
Connection Orientation
Straight
Contact Material
Brass
NEMA Enclosure Rating
Not Rated
Polarized
Yes
Number of Outlets
2
Horsepower Rating
1 hp
Minimum Operating Temperature
-40 Degrees F
Mounting Screws
Triple Combination Head, Steel
Pole
2
Maximum Working Voltage
125V as rated
NOM Certified
57
Locking Pins
Solid Brass
Bushing
Solid Brass
Termination
Modular
Base Material
Nylon
Flammability
Rated V-2 per UL94
ANSI
C-73
Ground Clips
Nickel-Plated Brass
Wire
3
Feature 4
Smooth Face
Device Type
Duplex Receptacle Outlet
Operating Temperature
-40°C to 60°C
cULus
Listed
Dielectric Voltage
Withstands 2000V per UL498
Current Interrupting
Certified for current interrupting at full rated current
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Mounting Strap
Single Piece Nickel-Plated Brass with integral ground contact
Line Contacts
0.040 Thick Solid Brass
Cover Material
Nylon

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
