  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

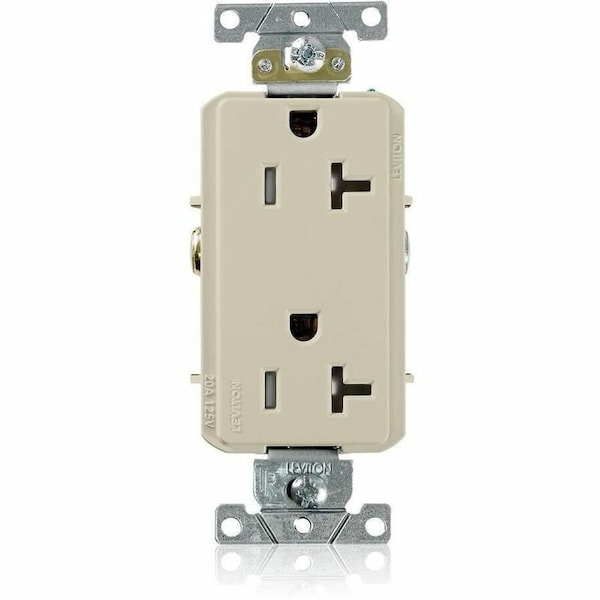

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory TDR20-I - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

  • Mfr # TDR20-I

  • Zoro # G804836444

product price: $9.79
/ea
Sold in multiples of 10 for $97.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TDR20-I
Zoro #
G804836444
UPC #
07847739199
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Face Plate Height
2.8 in
Maximum Wire Size
10 AWG
Overall Depth
0.9 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-1 & WD-6, NOM 057, UL 498, UL Federal Specification WC-596, cULus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Application Environment
Heavy-Duty Industrial Grade
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type - Plugs and Receptacles
Decorator Duplex
Includes
Cover, Wallplate
Material
PBT Polyester Blend (Body and Face)
Sub-Category
Duplex Receptacles
Wiring Method - Plugs and Receptacles
Back and Side
Tamper Resistant
Yes
HP
1 hp
Market
Industrial
NEMA Enclosure Rating
Not Rated
Housing Material
PBT Polyester
Horsepower Rating
1 hp
Connection Orientation
Straight
Includes Mounting Hardware
Yes
UL 94 Flammability Rating
V-0
Contact Material
Brass
Polarized
Yes
Grade
Federal Specification
Minimum Operating Temperature
-40 Degrees F
Number of Outlets
2
Maximum Operating Temperature
167 Degrees F
Cover Type
No Cover
GFCI
No
Terminal Accom.
#14 AWG - #10 AWG
Nema Rating
WD-1, WD-6
Terminal Clamps
Brass
Feature 2
Tamper-Resistant
Termination
Back or Side Wire
Ground Contacts
0.030" Brass
Mounting Screws
Triple-Drive Plated Steel
Line Contacts
Phosphor Bronze Triple Wipe 0.031
Feature 4
Smooth Face
Body Material
PBT Polyester Blend
Certification/Listing
cULus, NOM-ANCE
Pole
2
Operating Temperature
-40°C to 75°C
Dielectric Voltage
Withstands 3000 V minimum
Screw Terminal Torque
14-18 in-lbs
Grounding Screw
#8 Hex Head, Triple-Drive Brass
Face Material
PBT Polyester Blend
Applicable Standards
UL 498, Fed Spec W-C-596, CSA C22.2. No. 42
Shutter Mechanism
Acetal
Flammability
Rated V-0 per UL 94
Terminal Screws
#8 Triple-Drive Brass
Temperature Rise
Max 30 °C temperature rise at full rated current
Ground Clips
Brass
Wire
3
Terminal ID
Brass - Hot, Silver - Neutral, Green - Ground,
Wire Type
Stranded or Solid
Strap Material
Steel (Galvanized G60)
Device Type
Duplex Receptacle Outlet
ANSI
C-73

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
