  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Orange

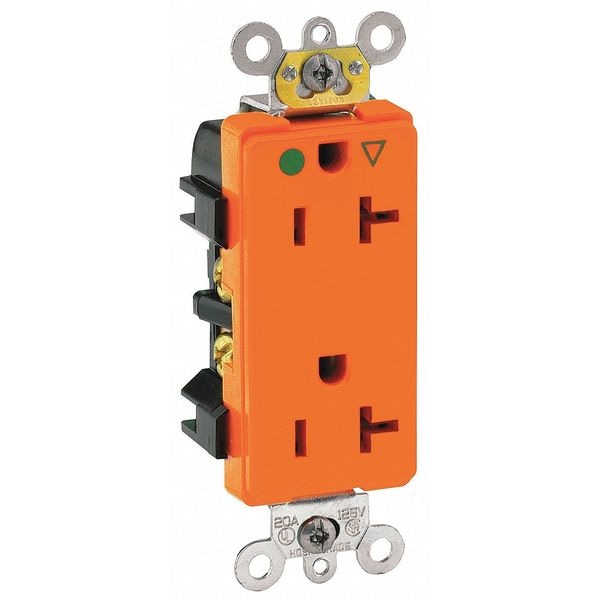

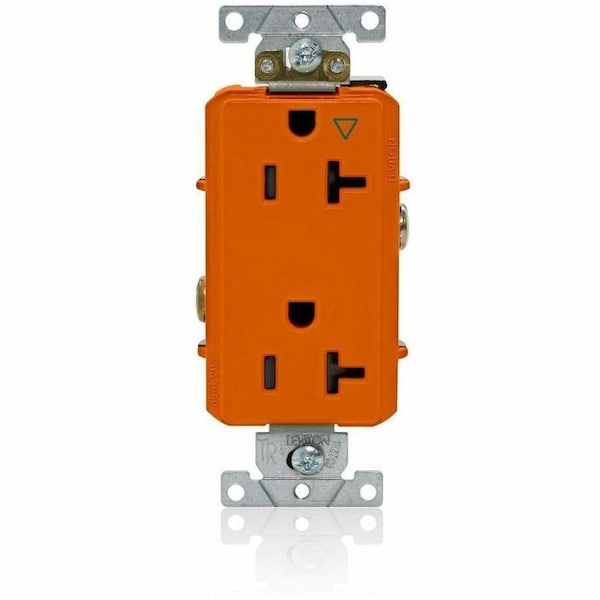

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Orange 16362-OIG - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Orange

  • Mfr # 16362-OIG

  • Zoro # G504393339

product price: $16.39
/ea
Sold in multiples of 10 for $163.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16362-OIG
Zoro #
G504393339
UPC #
07847790910
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Face Plate Width
1.4 in
Face Plate Height
2.8 in
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Orange
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, RoHS Compliant, UL 498 Federal Specification W-C-596 CSA C22.2 No. 42, cULus NOM-ANCE
Flange Type
Non-Flanged
Application Environment
Heavy-Duty Industrial Grade
Sub-Category
Duplex Receptacles
Outlet Type - Plugs and Receptacles
Decorator Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Material
PBT Polyester Blend (Body and Face)
Includes
Strap Material
HP
1 hp
Wiring Method - Plugs and Receptacles
Back and Side
Horsepower Rating
1 hp
NEMA Enclosure Rating
Not Rated
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Market
Industrial
GFCI
No
Grade
Federal Specification
UL 94 Flammability Rating
V-2
Cover Type
No Cover
Housing Material
PBT Polyester
Contact Material
Phosphor Bronze
Connection Orientation
Straight
Includes Mounting Hardware
Yes
Number of Outlets
2

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Orange, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
