  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Red

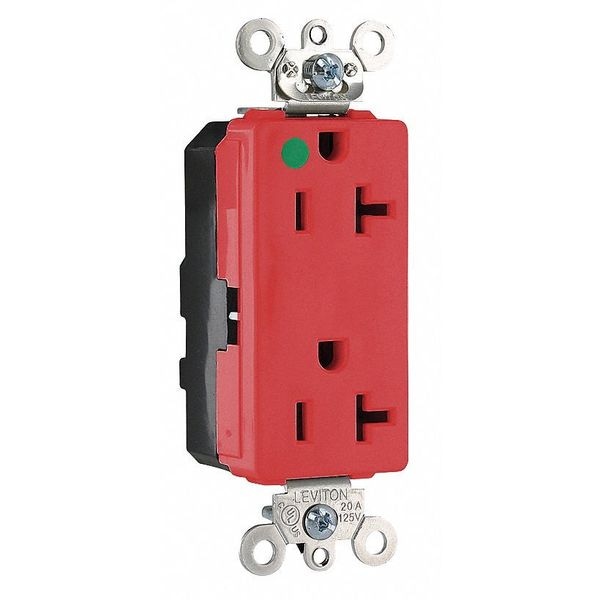

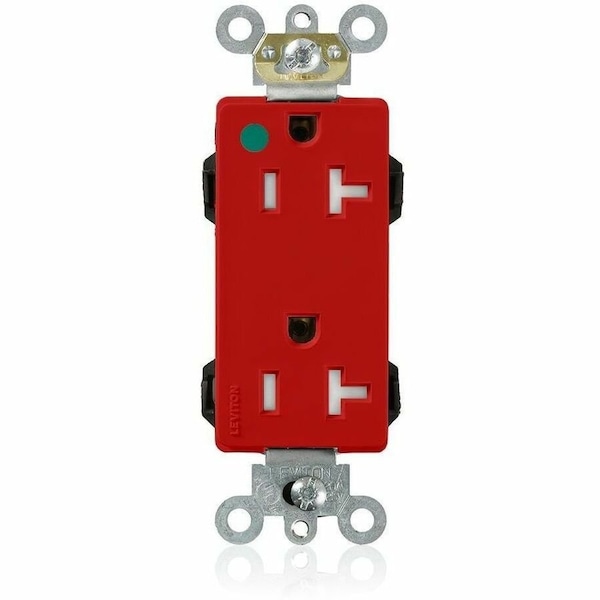

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Red M1636-ILR - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Red

  • Mfr # M1636-ILR

  • Zoro # G204393356

product price: $23.69
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M1636-ILR
Zoro #
G204393356
UPC #
07847759295
Country of Origin
Mexico

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Grounding
Self-Grounded
Housing Color
Red
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA, NEMA WD-1 & WD-6, NOM 057, UL 498, UL Federal Specification WC-596
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Application Environment
Extra Heavy-Duty Hospital Grade
Material
Nylon (Body and Face)
Sub-Category
Duplex Receptacles
Special Features
Illuminated
HP
1 hp
Includes
Wallplate
Outlet Type - Plugs and Receptacles
Decorator Duplex
Wiring Method - Plugs and Receptacles
Modular
Housing Material
Nylon
GFCI
No
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
140 Degrees F
Grade
Hospital Grade
Connection Orientation
Straight
Includes Mounting Hardware
Yes
NEMA Enclosure Rating
Not Rated
Contact Material
Brass
Number of Outlets
2
Polarized
Yes
Cover Type
No Cover
Horsepower Rating
1 hp
Termination
Modular
Flammability
Rated V-2 per UL94
Device Type
Duplex Receptacle Outlet
CSA
152105
ANSI
C-73
UL 498 & Fed Spec WD496
E13399
Dielectric Voltage
Withstands 2000V per UL498
Feature 4
Smooth Face
Ground Clips
Nickel-Plated Brass
Locking Pins
Solid Brass
Feature 3
Illuminated
Face Material
Nylon
Strap Material
Nickel-Plated Brass
Body Material
Nylon
Illumination
100,000 HR Green LED's
Operating Temperature
-40°C to 60°C
Line Contacts
0.040" Brass
Current Limiting
Full Rated Current
Lead Identification
Leads identified in accordance with UL 498 (black, white & green)
Pole
2
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Wire
3

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Red, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable, Standards ANSI, cULus Listed, NOM Certified
