  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

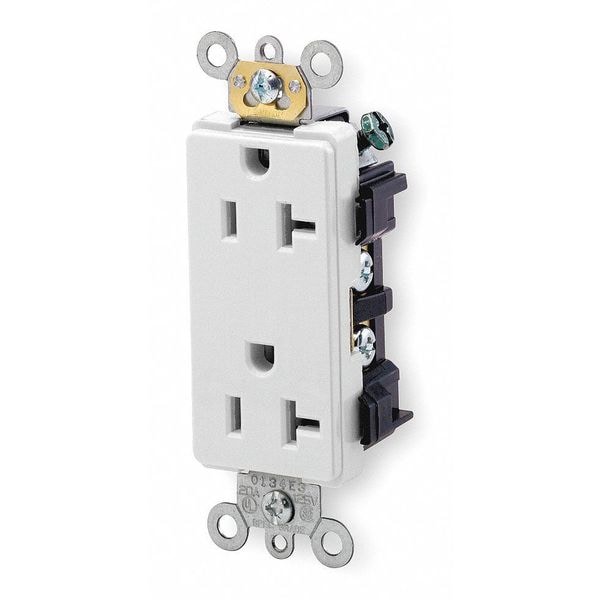

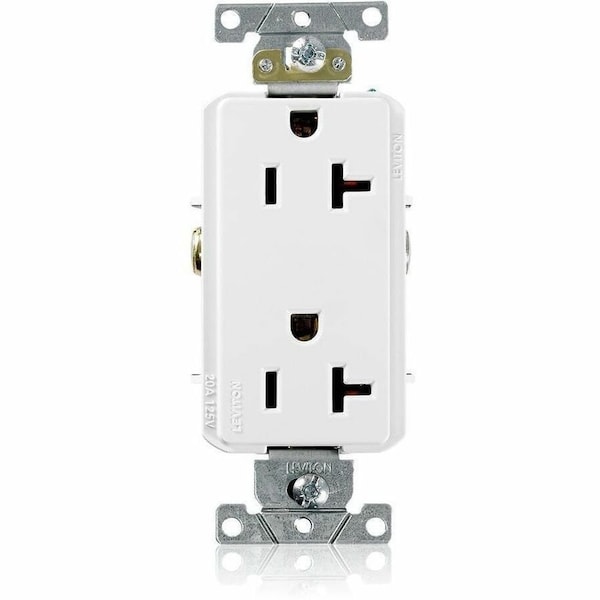

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White 16342-W - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

  • Mfr # 16342-W

  • Zoro # G404393354

product price: $5.79
/ea
Sold in multiples of 10 for $57.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
16342-W
Zoro #
G404393354
UPC #
07847778826
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Face Plate Width
1.6 in
Minimum Wire Size
14 AWG
Face Plate Height
2.6 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Self-Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-1 and WD-6, UL 498 File E13399
Flange Type
Non-Flanged
Outlet Type - Plugs and Receptacles
Decorator Duplex
Sub-Category
Duplex Receptacles
Material
Thermoplastic Nylon (Body and Face)
Includes
Strap Material
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Application Environment
Commercial
HP
1 hp
Wiring Method - Plugs and Receptacles
Side
Includes Mounting Hardware
Yes
UL 94 Flammability Rating
V-2
Cover Type
No Cover
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Contact Material
Brass
Market
Commercial
Connection Orientation
Straight
Grade
Federal Specification
Housing Material
Thermoplastic
Number of Outlets
2
NEMA Enclosure Rating
Not Rated
Horsepower Rating
1 hp
GFCI
No
Termination
Side Wire
Operating Temperature
-40C to 60C
Grounding Screw
Brass 8-32
Terminal Screws
Brass 10-32
At Rated Voltage
1 HP
Pole
2-Pole
Ground Clips
Brass-Plated
Feature 4
Smooth Face
Terminal Accom.
14-10 AWG
Body Material
Thermoplastic Nylon
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
UL498
File E13399
Clamp Nuts
Zinc-Plated Steel
Flammability
Rated V-2 per UL94
Screw Terminal Torque
14-18 in-lbs
Current Limiting
Full Rated Current
Device Type
Duplex Receptacle Outlet
ANSI
C-73
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Dielectric Voltage
Withstands 2000V per UL498
Face Material
Thermoplastic Nylon
Strap Material
Zinc-Plated Steel
Wire
3-Wire
Line Contacts
Brass Triple-Wipe .031 Thick
CSA C22.2 No. 42
File LR-406

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
