  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

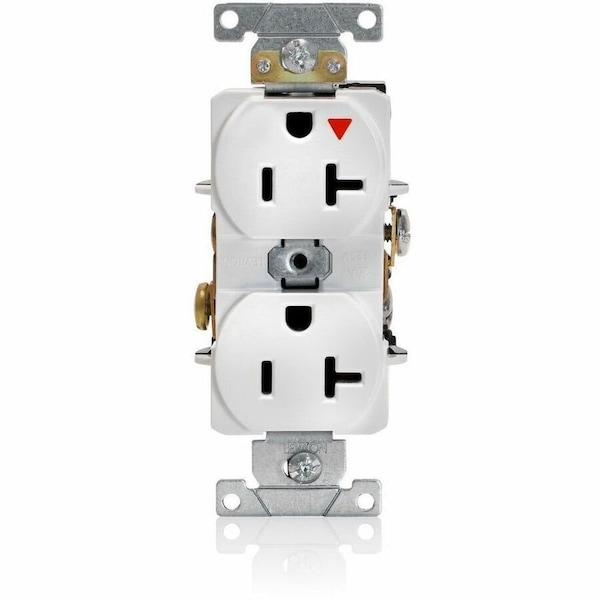

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White 5362-IGW - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

  • Mfr # 5362-IGW

  • Zoro # G904393274

product price: $8.19
/ea
Sold in multiples of 10 for $81.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5362-IGW
Zoro #
G904393274
UPC #
07847705327
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.1 in
Face Plate Height
2.8 in
Minimum Wire Size
14 AWG
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL 498, UL Federal Specification WC-596
Flange Type
Non-Flanged
Sub-Category
Duplex Receptacles
Material
Thermoplastic Nylon (Body and Face)
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Application Environment
Heavy-Duty Industrial Grade
HP
1 hp
Outlet Type - Plugs and Receptacles
Duplex
Wiring Method - Plugs and Receptacles
Back and Side
Voltage
125 VAC
Housing Material
Thermoplastic Nylon
Number of Outlets
2
Minimum Operating Temperature
-40 Degrees F
Market
Commercial, Industrial
Polarized
Yes
Grade
Federal Specification
NEMA Enclosure Rating
Not Rated
Connection Orientation
Straight
GFCI
No
UL 94 Flammability Rating
V-2
Horsepower Rating
1 hp
Cover Type
No Cover
Contact Material
Phosphor Bronze
Includes Mounting Hardware
Yes
Maximum Operating Temperature
140 Degrees F
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Wire
3
Torque Range
14-16 inch pounds
Dielectric Voltage
Withstands 2000V per UL498
ANSI
C-73
Flammability
Rated V-2 per UL 94
Body Material
Thermoplastic Nylon
Grounding Screw
Brass 8-32
Face Material
Thermoplastic Nylon
At Rated Voltage
1 HP
UL Fed Spec WC-596
File E13399
CSA C22.2 No. 42
File 152105
Isolated Ground System
Brass
Termination
Back or Side Wire
UL498
File E13399
Feature 4
Smooth Face
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Terminal Screws
Plated Brass
Operating Temperature
-40°C to 60°C
Current Limiting
Full Rated Current
Line Contacts
Phosphor Bronze
Strap Material
Galvanized Steel
Terminal Accom.
14-10 AWG
Pole
2
Screw Terminal Torque
14-18 in-lbs
Device Type
Duplex Receptacle Outlet
Clamp Nuts
Galvanized Steel

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Thermoplastic Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
