  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

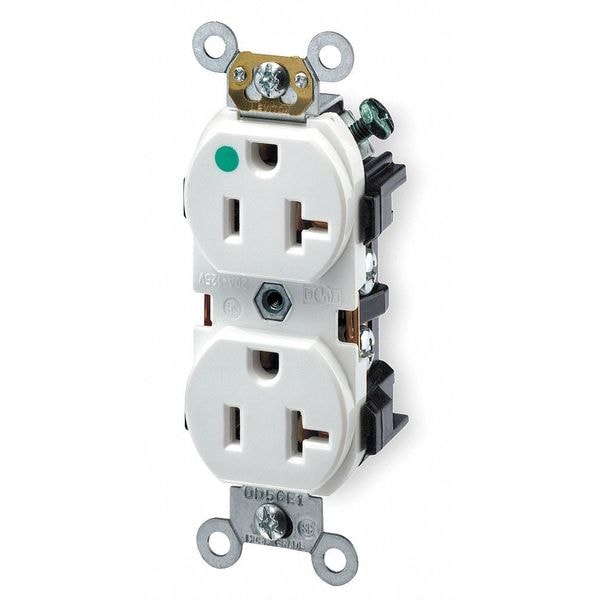

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White 8300-HW - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

  • Mfr # 8300-HW

  • Zoro # G704836445

product price: $9.89
/ea
Sold in multiples of 10 for $98.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8300-HW
Zoro #
G704836445
UPC #
07847781891
Country of Origin
Mexico

Dimensions

Face Plate Width
1.3 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.1 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL Federal Specification WC-596, UL 498HG
Flange Type
Non-Flanged
Outlet Type - Plugs and Receptacles
Duplex
Application Environment
Heavy-Duty Hospital Grade
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
HP
1 hp
Material
Nylon (Body and Face)
Wiring Method - Plugs and Receptacles
Back and Side
Sub-Category
Duplex Receptacles
Maximum Operating Temperature
140 Degrees F
Connection Orientation
Straight
GFCI
No
Polarized
Yes
Includes Mounting Hardware
Yes
Number of Outlets
2
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
Not Rated
Horsepower Rating
1 hp
Contact Material
Nickel-Plated Brass
Cover Type
No Cover
Grade
Hospital Grade Fed. Spec.
Flammability
Rated V-2 per UL94
Wire
3
Ground Clips
Brass
Clamp Nuts
Zinc-Plated Steel
Torque Range
14-16 inch pounds
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Body Material
Nylon
Terminal Screws
Brass
Dielectric Voltage
Withstands 2000V per UL498
Line Contacts
Phosphor Bronze
UL498HG
File E13399
Screw Terminal Torque
14-18 in-lbs
Device Type
Duplex Receptacle Outlet
ANSI
C-73
Feature 4
Smooth Face
Terminal Accom.
14-10 AWG
Pole
2
CSA C22.2 No. 42
File 152105
Grounding Screw
Brass
Strap Material
Galvanized Steel with Riveted Ground Contacts
Face Material
Nylon
Termination
Back or Side Wire
Operating Temperature
-40°C to 60°C
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
UL Fed Spec WC-596
File E13399
Current Limiting
Full Rated Current

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
