  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

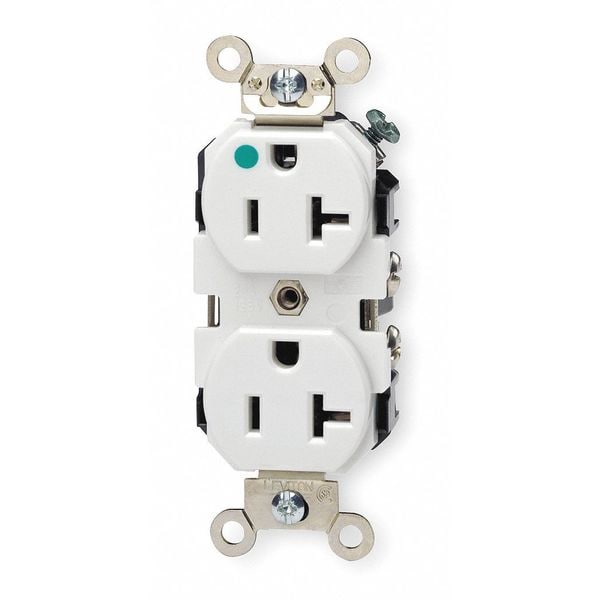

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White 8300-W - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

  • Mfr # 8300-W

  • Zoro # G804836482

product price: $11.39
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8300-W
Zoro #
G804836482
UPC #
07847781863
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL Federal Specification WC-596, UL 498HG
Flange Type
Non-Flanged
Application Environment
Extra Heavy-Duty Hospital Grade
Wiring Method - Plugs and Receptacles
Back and Side
Sub-Category
Duplex Receptacles
HP
1 hp
Outlet Type - Plugs and Receptacles
Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Material
Nylon (Body and Face)
Contact Material
Nickel-Plated Brass
Horsepower Rating
1 hp
Number of Outlets
2
GFCI
No
Maximum Operating Temperature
140 Degrees F
UL 94 Flammability Rating
V-2
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
NEMA Enclosure Rating
Not Rated
Grade
Hospital Grade Fed. Spec.
Connection Orientation
Straight
Cover Type
No Cover
Polarized
Yes
Device Type
Duplex Receptacle Outlet
Current Limiting
Full Rated Current
Grounding Screw
Plated Brass
Strap Material
Nickel Plated Brass
Wire
3
Operating Temperature
-40°C to 60°C
Screw Terminal Torque
14-18 in-lbs
Face Material
Nylon
Clamp Nuts
Zinc-Plated Steel
Ground Clips
Nickel-Plated Brass
ANSI
C-73
Pole
2
Torque Range
14-16 inch pounds
UL498HG
File E13399
Body Material
Nylon
Terminal Accom.
14-10 AWG
Terminal Screws
Nickel-Plated Brass 10-32
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
UL Fed Spec WC-596
File E13399
Feature 4
Smooth Face
Yoke
Nickel-Plated Brass
Termination
Back or Side Wire
Dielectric Voltage
Withstands 2000V per UL498
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Line Contacts
Nickel-Plated Brass Triple-Wipe .040 Thick
CSA C22.2 No. 42
File 152105

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
