  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

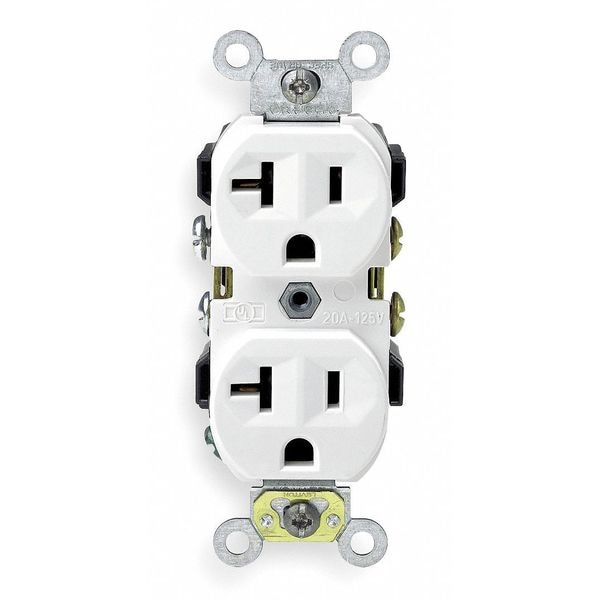

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White CR20-W - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

  • Mfr # CR20-W

  • Zoro # G904836504

product price: $2.99
/ea
Sold in multiples of 10 for $29.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CR20-W
Zoro #
G904836504
UPC #
07847781545
Country of Origin
United States

Dimensions

Face Plate Width
1.5 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Overall Depth
1.1 in
Face Plate Height
2.8 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Self-Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-1 and WD-6, NOM 057, UL 498 File E13399
Flange Type
Non-Flanged
Sub-Category
Duplex Receptacles
Includes
Strap Material
Outlet Type - Plugs and Receptacles
Duplex
HP
1 hp
Wiring Method - Plugs and Receptacles
Side
Application Environment
Commercial
Material
Thermoplastic (Body and Face)
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Special Features
Indented Face
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1 hp
Contact Material
Brass
Housing Material
Thermoplastic
Maximum Operating Temperature
140 Degrees F
NEMA Enclosure Rating
Not Rated
Grade
Federal Specification
Number of Outlets
2
Connection Orientation
Straight
Includes Mounting Hardware
Yes
Market
Commercial
Cover Type
No Cover
Polarized
Yes
GFCI
No

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
