  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

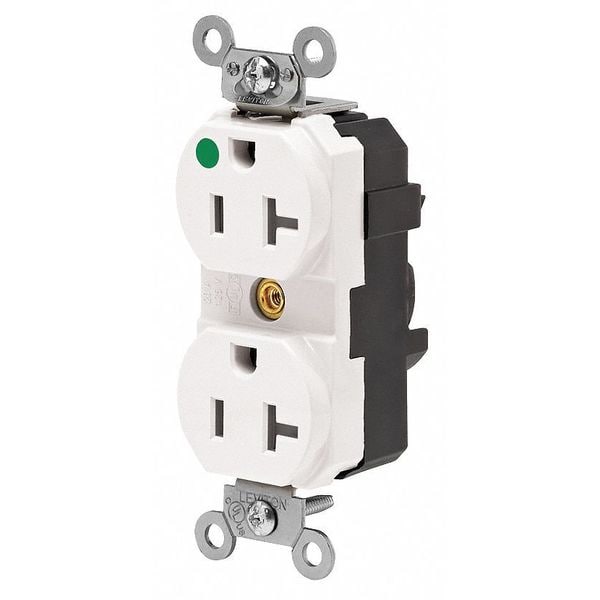

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White M8300-ILW - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

  • Mfr # M8300-ILW

  • Zoro # G104393289

product price: $30.39
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M8300-ILW
Zoro #
G104393289
UPC #
07847755302
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Grounding
Self-Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI, CSA Certified, Federal Specification, RoHS Compliant, UL Listed
Flange Type
Non-Flanged
Special Features
Illuminated
Outlet Type - Plugs and Receptacles
Duplex
HP
1 hp
Application Environment
Extra Heavy-Duty Hospital Grade
Material
Nylon (Body and Face)
Sub-Category
Duplex Receptacles
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Includes
Wallplate
Wiring Method - Plugs and Receptacles
Modular
Connection Orientation
Straight
NEMA Enclosure Rating
Not Rated
Number of Outlets
2
Horsepower Rating
1 hp
Polarized
Yes
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Cover Type
No Cover
GFCI
No
Contact Material
Brass
Includes Mounting Hardware
Yes
Grade
Hospital Grade Fed. Spec.
Maximum Operating Temperature
140 Degrees F
Device Type
Duplex Receptacle Outlet
Illumination
100,000 HR Green LED's
Face Material
Nylon
Ground Clips
Brass
Body Material
Nylon
Feature 3
Illuminated
Dielectric Voltage
Withstands 2000V per UL498
Operating Temperature
-40°C to 60°C
Strap Material
Nickel Plated Brass
Flammability
Rated V-2 per UL94
Termination
Modular
UL 498 & Fed Spec WD496
E13399
Current Limiting
Full Rated Current
Pole
2
Locking Pins
Solid Brass
Wire
3
Shutter Mechanism
Delrin® Acetal
Lead Identification
Leads identified in accordance with UL 498 (black, white & green)
ANSI
C-73
CSA
152105
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Feature 4
Smooth Face
Line Contacts
0.040" Brass

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
