  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

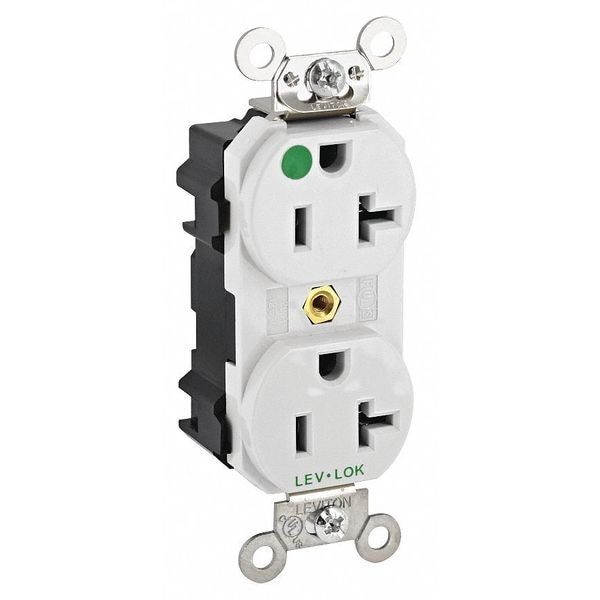

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White M8300-W - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

  • Mfr # M8300-W

  • Zoro # G804393299

product price: $14.39
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M8300-W
Zoro #
G804393299
UPC #
07847736383
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Self-Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-1 & WD-6, NOM 057, UL Federal Specification WC-596, UL 498HG, cULus
Flange Type
Non-Flanged
Sub-Category
Duplex Receptacles
Outlet Type - Plugs and Receptacles
Duplex
Application Environment
Extra Heavy-Duty Hospital Grade
HP
1 hp
Wiring Method - Plugs and Receptacles
Modular
Includes
Wallplate
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Material
Nylon (Base)
Includes Mounting Hardware
Yes
Maximum Operating Temperature
140 Degrees F
Cover Type
No Cover
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
Not Rated
Housing Material
Nylon
Number of Outlets
2
GFCI
No
Contact Material
Brass
Connection Orientation
Straight
Grade
Hospital Grade
Polarized
Yes
Horsepower Rating
1 hp
UL Fed Spec WC-596
File E13399
Cover Material
Nylon
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Yoke
Nickel-Plated Brass
NOM Certified
57
Locking Pins
Solid Brass
Base Material
Nylon
Mounting Screws
Triple Combination Head, Steel
Pole
2
Maximum Working Voltage
125V as rated
Wire
3
Current Interrupting
Certified for current interrupting at full rated current
Dielectric Voltage
Withstands 2000V per UL498
Device Type
Duplex Receptacle Outlet
Ground Clips
Nickel-Plated Brass
ANSI
C-73
UL498HG
File E13399
cULus
Listed
Strap Material
Nickel Plated Brass
Feature
Smooth Face
Standards and Certifications
C-UL-US
Bushing
Solid Brass
Line Contacts
0.040 Thick Solid Brass
Mounting Strap
Single Piece Nickel-Plated Brass with integral ground contact
Termination
Modular
Current Limiting
Full Rated Current
Operating Temperature
-40°C to 60°C
CSA C22.2 No. 42
File 152105

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable, Standards ANSI, cULus Listed, NOM Certified, RoHS Compliant
