  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

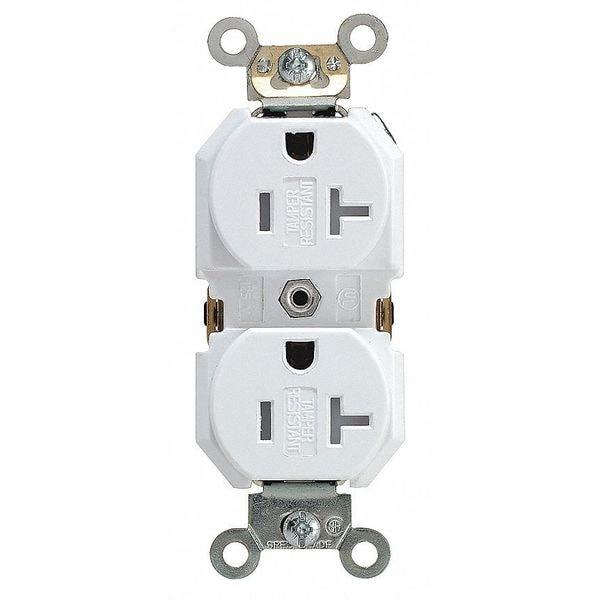

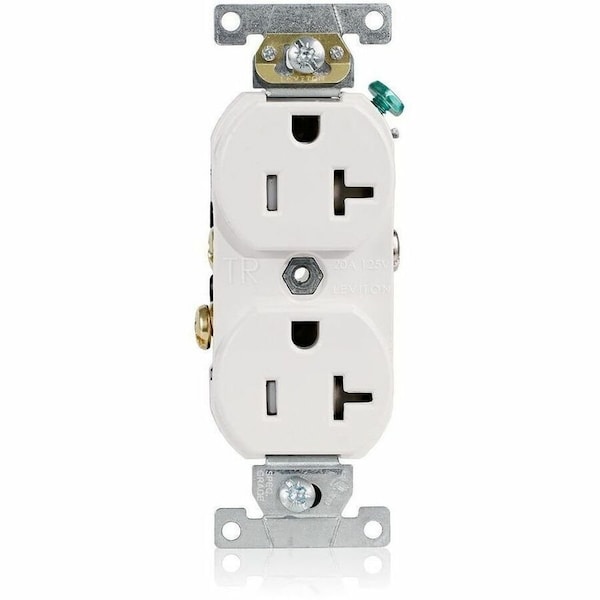

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White TBR20-W - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, White

  • Mfr # TBR20-W

  • Zoro # G204393264

product price: $7.89
/ea
Sold in multiples of 2 for $15.78

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TBR20-W
Zoro #
G204393264
UPC #
07847738181
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-1 & WD-6, NOM 057, UL 498
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
HP
1 hp
Application Environment
Commercial
Tamper Resistant
Yes
Special Features
Two Outlets Marked Controlled
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type - Plugs and Receptacles
Duplex
Sub-Category
Duplex Receptacles
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Material
Thermoplastic (Body and Face)
Polarized
Yes
Contact Material
Brass
Maximum Operating Temperature
140 Degrees F
Horsepower Rating
1 hp
Connection Orientation
Straight
Housing Material
Thermoplastic
GFCI
No
Includes Mounting Hardware
Yes
Minimum Operating Temperature
-40 Degrees F
Cover Type
No Cover
Number of Outlets
2
Market
Commercial
NEMA Enclosure Rating
Not Rated
Grade
Federal Specification
Dielectric Voltage
Withstands 2000V per UL498
UL 498
File E13399
Ground Clips
Brass
At Rated Voltage
1 HP
Screw Terminal Torque
14-18 in-lbs
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Shutter Mechanism
Acetal
Wire
3
Strap Material
Zinc-Plated Steel
Body Material
Thermoplastic
Terminal Screws
Plated Steel
Termination
Back and Side Wire
Device Type
Duplex Receptacle Outlet
Pole
2
Feature
Two Outlets Marked Controlled|Tamper-Resistant|Smooth Face
CSA C22.2 No. 42
File 152105
Face Material
Thermoplastic
Terminal Accom.
14-10 AWG
Line Contacts
Brass .031 Thick
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Grounding Screw
Plated Steel
Current Limiting
Full Rated Current
ANSI
C-73
Operating Temperature
-40°C to 60°C

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards ANSI, CSA Certified, NOM Certified, UL Listed
