  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

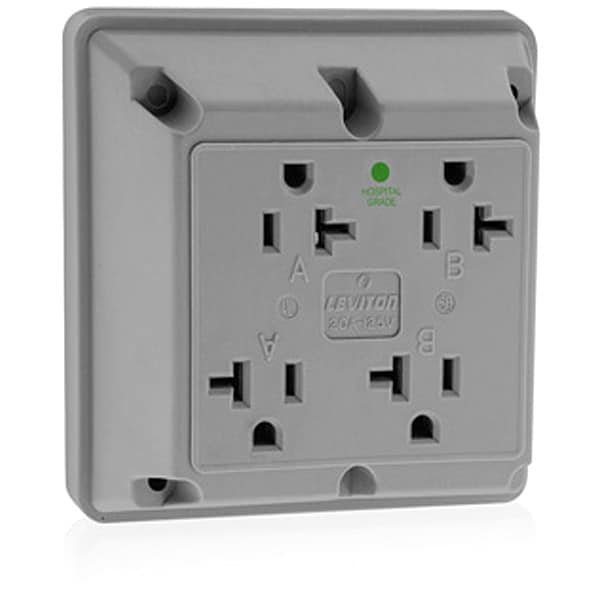

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded 21254-HGY - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # 21254-HGY

  • Zoro # G704256045

product price: $28.85
/ea

Key Features

Receptacle Type
Quad
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
21254-HGY
Zoro #
G704256045
UPC #
07847783083
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Face Plate Height
4.5 in
Face Plate Width
4.5 in
Overall Depth
1.2 in
Maximum Wire Size
12 AWG
Mount Hole Center-to-Center Height
3.4 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Quad
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Gray
Mount Type
Surface
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-1 and WD-6, UL 498 File E13399, UL 498HG File E13399
Flange Type
Non-Flanged
HP
1 hp
Application Environment
Heavy-Duty Hospital Grade
Outlet Type - Plugs and Receptacles
Quad
Material
Nylon (Body and Face)
Wiring Method - Plugs and Receptacles
Side
Sub-Category
Quad Receptacles
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Contact Material
Phosphor Bronze
Number of Outlets
4
Polarized
Yes
GFCI
No
Connection Orientation
Straight
Housing Material
Nylon
Includes
Strap Material
Includes Mounting Hardware
Yes
Grade
Hospital Grade
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
Not Rated
Maximum Operating Temperature
140 Degrees F
Cover Type
No Cover
UL 94 Flammability Rating
V-2
Horsepower Rating
1 hp
Current Limiting
Full Rated Current
Dielectric Voltage
Withstands 2000V per UL498
At Rated Voltage
1 HP
UL498HG
File E13399
Mounting Screws
Zinc-Plated Steel 8-32
Device Type
Quadruplex Receptacle Outlet
Flammability
Rated V-2 per UL 94
Grounding Screw
Plated Steel
Line Contacts
Phosphor Bronze
Terminal Accom.
14-12 AWG
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Strap Material
Galvanized Steel with Riveted Ground Contacts
ANSI
C-73
Face Material
Nylon
Terminal Screws
Brass 8-32
Screw Terminal Torque
10-12 in-lbs
Temperature Rise
Max 30C after 50 cycles OL at 150 percent rated current
Pole
2
UL498
File E13399
Body Material
Nylon
Termination
Side Wire
Torque Range
12-14 inch pounds
Wire
3
Operating Temperature
-40°C to 60°C
CSA C22.2 No. 42
File 152105

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 2, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Quad, Resistance Properties Not Applicable
