  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

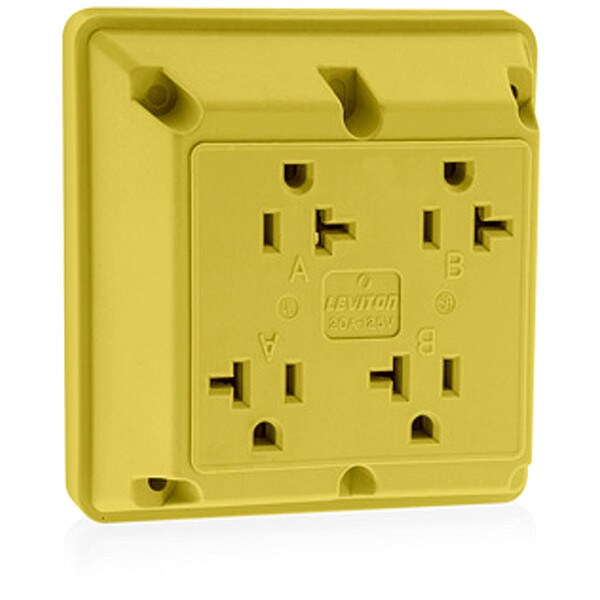

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded 21254-Y - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

  • Mfr # 21254-Y

  • Zoro # G004256066

product price: $31.79
/ea

Key Features

Receptacle Type
Quad
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
21254-Y
Zoro #
G004256066
UPC #
07847788286
Country of Origin
Mexico

Dimensions

Face Plate Height
4.5 in
Maximum Wire Size
12 AWG
Face Plate Width
4.5 in
Overall Depth
1.2 in
Mount Hole Center-to-Center Height
3.4 in
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Quad
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Yellow
Mount Type
Surface
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-1 and WD-6, UL 498 File E13399
Flange Type
Non-Flanged
Sub-Category
Quad Receptacles
Wiring Method - Plugs and Receptacles
Side
Application Environment
Heavy-Duty Industrial Grade
HP
1 hp
Material
Nylon (Body and Face)
Surge Suppression
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type - Plugs and Receptacles
Quad
NEMA Enclosure Rating
Not Rated
Surge Protection
Yes
Cover Type
No Cover
Grade
Federal Specification
Includes
Strap Material
Polarized
Yes
UL 94 Flammability Rating
V-2
Housing Material
Nylon
Contact Material
Phosphor Bronze
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
GFCI
No
Number of Outlets
4
Connection Orientation
Straight
Horsepower Rating
1 hp
Maximum Operating Temperature
140 Degrees F
Includes Mounting Hardware
Yes
Face Material
Nylon
Pole
2
Torque Range
12-14 inch pounds
Body Material
Nylon
Screw Terminal Torque
10-12 in-lbs
CSA C22.2 No. 42
File 152105
Line Contacts
Phosphor Bronze
UL498
File E13399
Dielectric Voltage
Withstands 2000V per UL498
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Temperature Rise
Max 30C after 50 cycles OL at 150 percent rated current
Flammability
Rated V-2 per UL 94
Terminal Accom.
14-12 AWG
Device Type
Quadruplex Receptacle Outlet
Termination
Side Wire
Operating Temperature
-40°C to 60°C
Current Limiting
Full Rated Current
Strap Material
Galvanized Steel with Riveted Ground Contacts
Wire
3
Terminal Screws
Plated Brass
At Rated Voltage
1 HP
Grounding Screw
Plated Steel
ANSI
C-73

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Yellow, Housing Material Nylon, Mount Type Surface, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Quad, Resistance Properties Not Applicable
