  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Isolated Ground

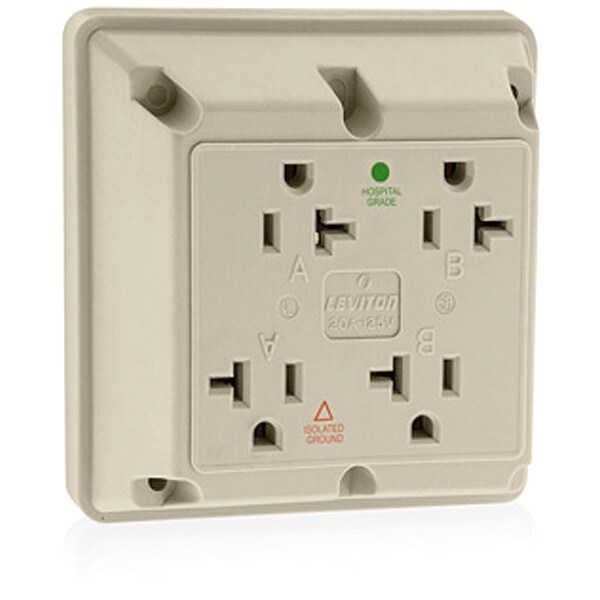

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Isolated Ground 21254-IGI - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Isolated Ground

  • Mfr # 21254-IGI

  • Zoro # G904256081

product price: $33.89
/ea

Key Features

Receptacle Type
Quad
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
21254-IGI
Zoro #
G904256081
UPC #
07847783087
Country of Origin
Mexico

Dimensions

Face Plate Height
4.5 in
Face Plate Width
4.5 in
Overall Depth
1.2 in
Mount Hole Center-to-Center Height
3.4 in
Minimum Wire Size
14 AWG
Maximum Wire Size
12 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Quad
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Isolated Ground
Housing Color
Ivory
Mount Type
Surface
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-1 and WD-6, UL 498 File E13399, UL 498HG File E13399
Flange Type
Non-Flanged
HP
1 hp
Sub-Category
Quad Receptacles
Voltage
125 VAC
Application Environment
Heavy-Duty Industrial Grade
Wiring Method - Plugs and Receptacles
Side
Outlet Type - Plugs and Receptacles
Quad
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Material
Nylon (Body and Face)
Grade
Hospital Grade
Includes
Strap Material
Cover Type
No Cover
Includes Mounting Hardware
Yes
Connection Orientation
Straight
Horsepower Rating
1 hp
GFCI
No
Housing Material
Nylon
Market
Industrial
Contact Material
Phosphor Bronze
Maximum Operating Temperature
140 Degrees F
Polarized
Yes
NEMA Enclosure Rating
Not Rated
UL 94 Flammability Rating
V-2
Minimum Operating Temperature
-40 Degrees F
Number of Outlets
4
Terminal Screws
Plated Brass
UL498HG
File E13399
Grounding Screw
Plated Steel
Device Type
Quadruplex Receptacle Outlet
Temperature Rise
Max 30C after 50 cycles OL at 150 percent rated current
UL498
File E13399
Ground Contacts
Phosphor Bronze
Flammability
Rated V-2 per UL 94
Face Material
Nylon
Termination
Side Wire
Body Material
Nylon
Pole
2
Wire
3
Dielectric Voltage
Withstands 2000V per UL498
Strap Material
Galvanized Steel
Line Contacts
Phosphor Bronze
At Rated Voltage
1 HP
Screw Terminal Torque
10-12 in-lbs
Current Limiting
Full Rated Current
Torque Range
12-14 inch pounds
CSA C22.2 No. 42
File 152105
Operating Temperature
-40°C to 60°C
ANSI
C-73
Terminal Accom.
14-12 AWG
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Mounting Screws
Zinc-Plated Steel 8-32

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 2, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Quad, Resistance Properties Not Applicable
